SLLCP14-1470P88 | TURCK - Your Global Automation Partner

SLLCP14-1470P88

SLLCP14-1470P88

Thumbnail for SLLCP14-1470P88

Thumbnail for SLLCP14-1470P88

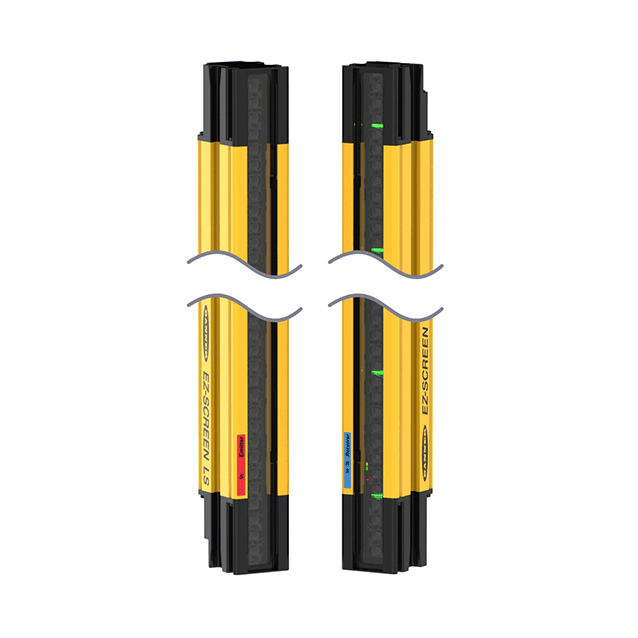

Safety Light Curtain

SLLCP14-1470P88

Order ID nr. 3089752

homeHome
Loading...

Base unit: PCE
EAN/UPC code: 662488897529
Gross weight: 8464
Height: 0
Length: 0
Net weight: 8464
Dimension unit: MMT
Weight unit: GRM
Volume: 0
Width: 0
Ambient temperature max. (°C): 55
Ambient temperature min. (°C): -20
Cable length (m): 0.3
Cascadable: Yes
Electrical connection: Cable with connector
Connector type
Design: Rectangular
Scan field (mm): 1470

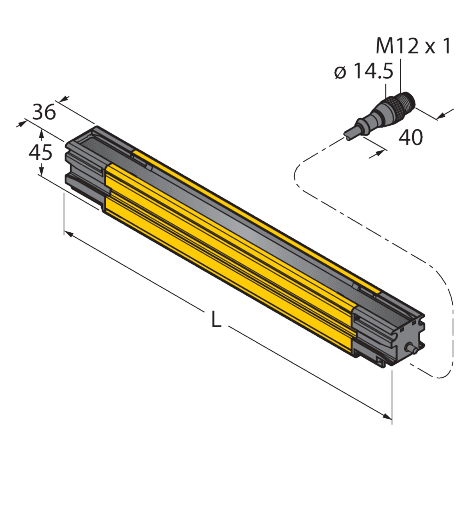

Dimensions: 45 mm x 36 mm x 1475 mm
Housing material: Metal
Housing quality: AL
Housing surface: Yellow polyester
Light type: IR
Start/Restart interlock: no
Number of beams: 168
Function: Light screen
Optical resolution (mm): 14
Output function
Protection class: IP65, IP67
Max. range (mm): 12000
With muting function: No

Nyckelfunktioner

Cascadable: Yes
Scan field (mm): 1470
Number of beams: 168
Optical resolution (mm): 14

I lager
Varugrupp	G1
Listpris	63 836,00 kr

homeTurck-Shop
Machine Safety
Safety Light Curtains
SLLCP14-1470P88

Totalt för artikeln63 836,00 kr

Kvantitet
