RSC RKC 572-2M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

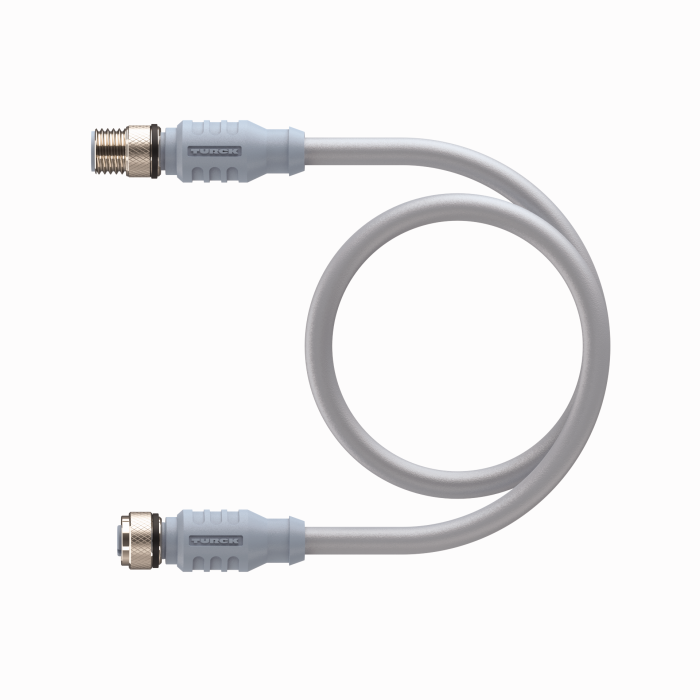

Cable for DeviceNet and CANopen
RSC RKC 572-2M
Order ID no. U0323
In Stock
List Price
SEK 574.00
home
Home
Loading...
Technical Data
Network protocol
DeviceNet
Cable length (m)
2
Application
Data
Design
Extension Cable

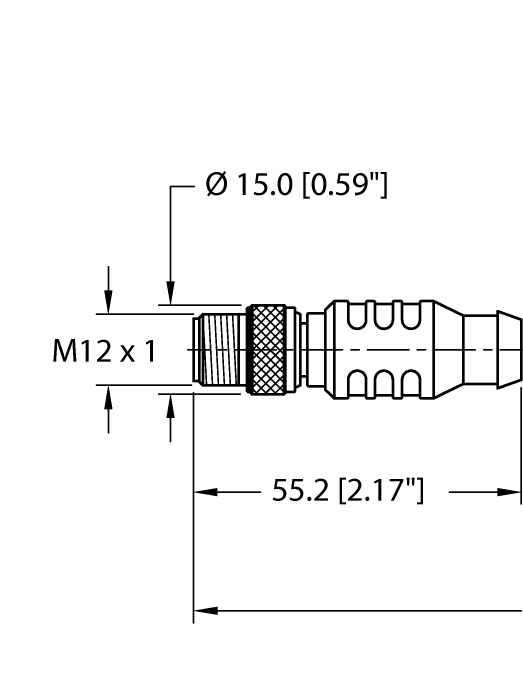

Connector A
Male, M12 × 1, Straight, A-coded
Number of pins
5
Coupling nut/screw material A
Brass

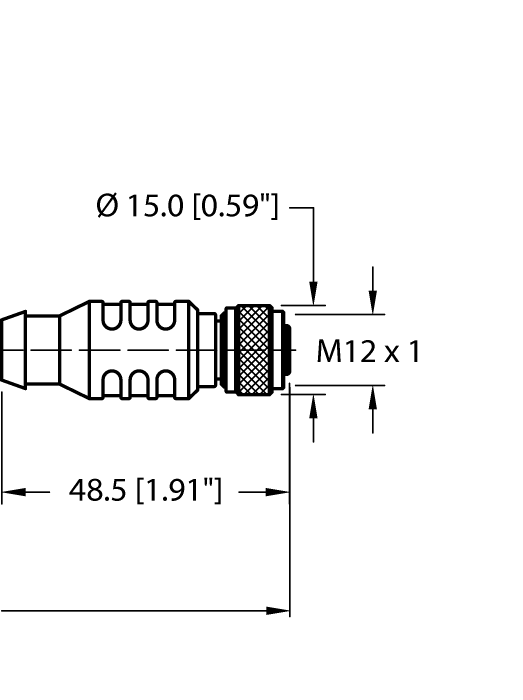

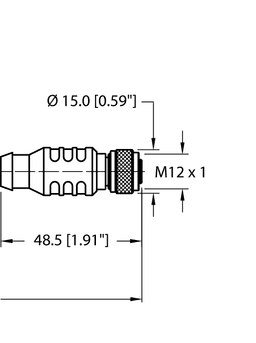

Connector B
Female, M12 × 1, Straight, A-coded
Number of Pins
5
Coupling nut/screw material B
Brass
Voltage (V)
250
Current (A)
4
Cable quality
PVC
Cable color
Gray
Special features
Shielded
Approvals
FM Div.2, CSA PA, UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
Ambient temperature min. (°C)
5
Ambient temperature max. (°C)
80
Number of Conductors
4
Key Features
Cable length (m)
2
Cable quality
PVC
Connector A
Male, M12 × 1, Straight, A-coded
Connector B
Female, M12 × 1, Straight, A-coded
