RKSW-D9T451-0.5M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
PROFIBUS Cable
RKSW-D9T451-0.5M
Order ID no. 6915767
home
Home
Loading...
Technical Data
Network protocol
PROFIBUS-DP
Cable length (m)
0.5
Application
Data
Design
Extension Cable

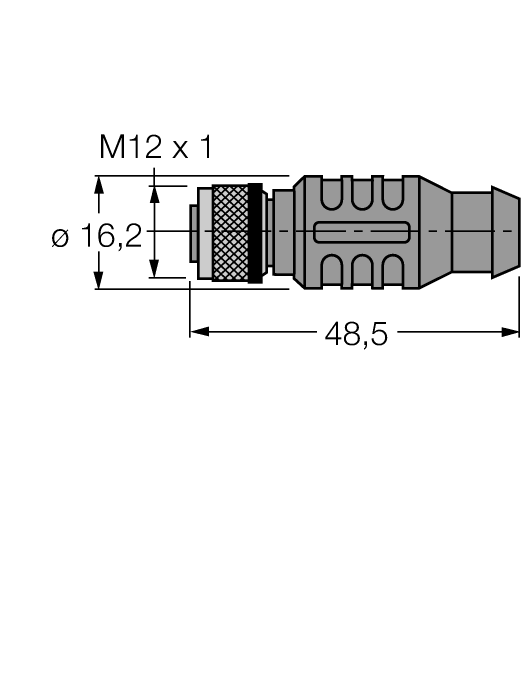

Connector A
Female, M12 × 1, Straight, B-coded
Number of pins
5
Coupling nut/screw material A
Brass

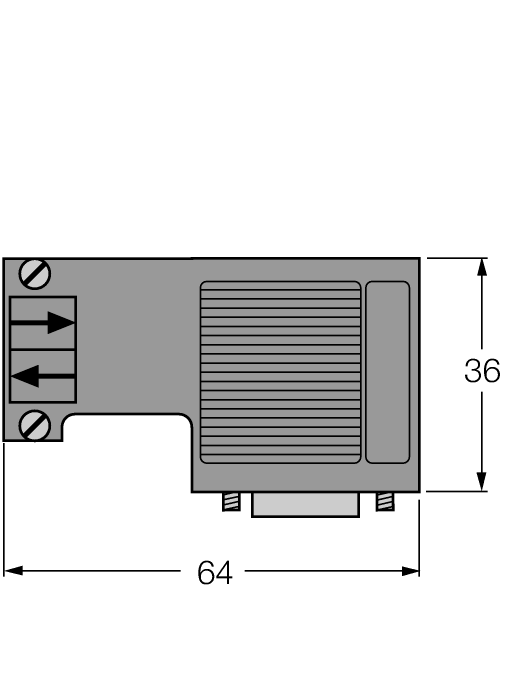

Connector B
Male, D-Sub, Angled
Number of Pins
9
Voltage (V)
250
Current (A)
4
Cable quality
PUR
Cable color
Violet
Approvals
UL
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
80
Core cross-section (mm²)
0.34
Number of Conductors
2
Key Features
Cable length (m)
0.5
Cable quality
PUR
Connector A
Female, M12 × 1, Straight, B-coded
Connector B
Male, D-Sub, Angled
In Stock
List Price
SEK 947.00
