Actuator and Sensor Cable, PUR

WSSV8T-1.15/TXL

Order ID no. 6636222

Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Cable length (m): 1.15
Application: Signal
Voltage: 30
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Number of pins: 8
Coupling nut/screw material A: Stainless Steel
Current (A): 2
Cable quality: PUR
Cable color: Black
Design: Connection Cable

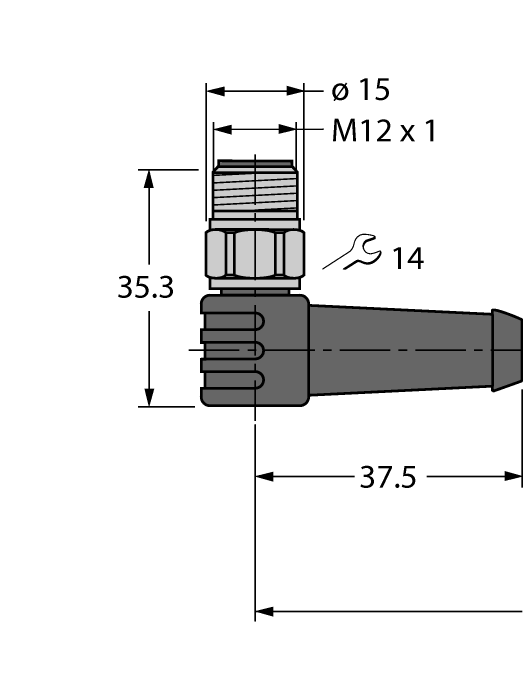

Connector A: Male, M12 × 1, Angled, A-coded
Core cross-section (mm²): 0.25
Number of Conductors: 8

In Stock
List Price	SEK 323.00
