PKG4.5S-1-RSW4.5T/TEL | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

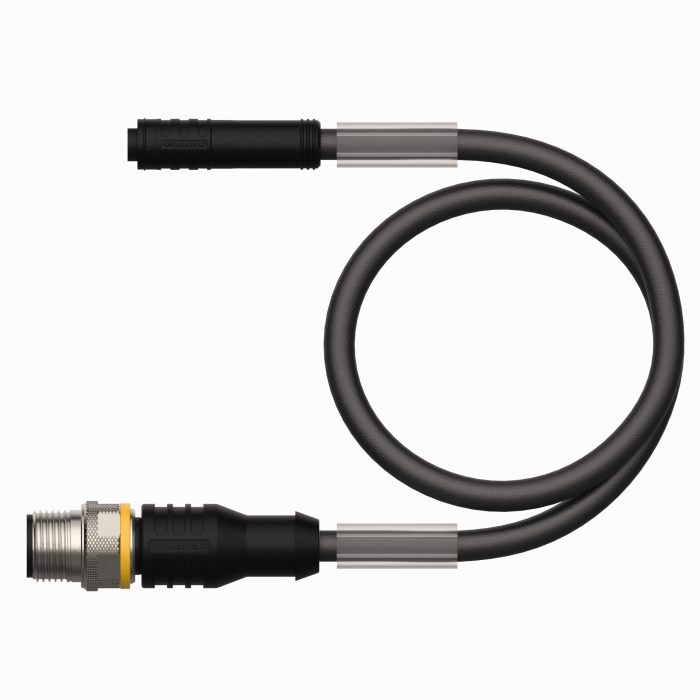

Actuator and Sensor Cable, PVC
PKG4.5S-1-RSW4.5T/TEL
Order ID no. 6634462
home
Home
Loading...
Technical Data
Ambient temperature min. (°C)
-5
Ambient temperature max. (°C)
80
Cable length (m)
1
Application
Signal
Voltage
50
Approvals
cULus
Number of pins
5
Number of Pins
5
Coupling nut/screw material B
Brass
Current (A)
4
Cable quality
PVC
Cable color
Black
Design
Extension Cable
Connector A

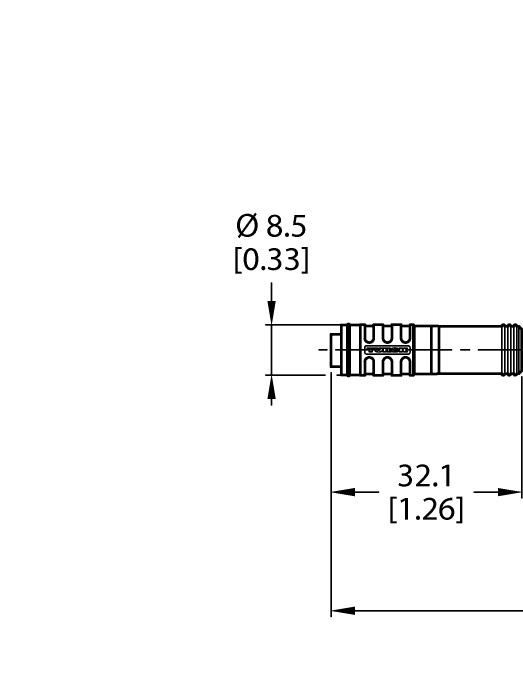

Female, Ø 8 mm, Straight, B-coded
Connector B

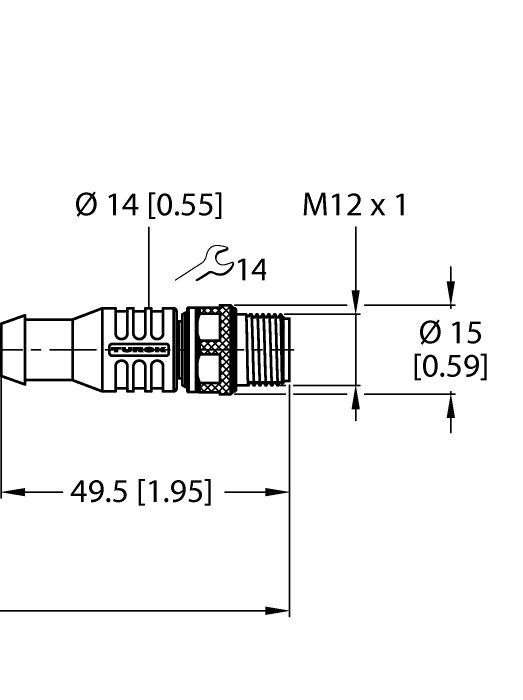

Male, M12 × 1, Straight, B-coded
Core cross-section (mm²)
0.34
Number of Conductors
5
Key Features
Cable length (m)
1
Cable quality
PVC
Connector A
Female, Ø 8 mm, Straight, B-coded
Connector B
Male, M12 × 1, Straight, B-coded
In Stock
Price Group
K1
List Price
SEK 233.00
