RKM52-8M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

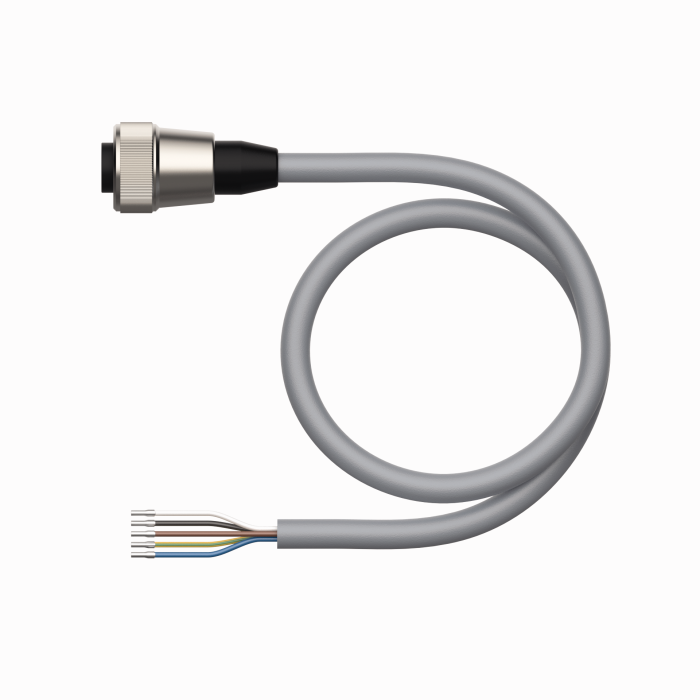

PROFIBUS-DP power cable
RKM52-8M
Order ID no. 6604718
In Stock
Price Group
K2
List Price
SEK 972.00
home
Home
Loading...
Technical Data
Cable length (m)
8
Application
Power
Design
Connection Cable

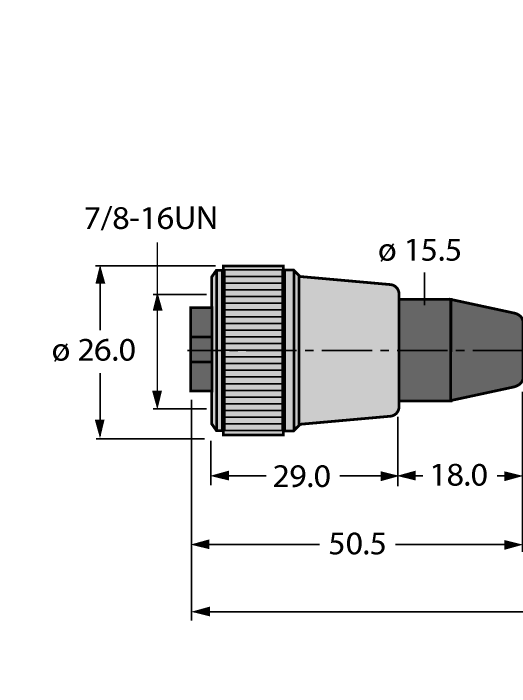

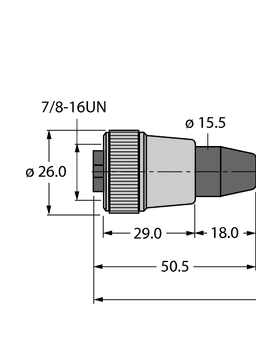

Connector A
Female, 7/8″-16 UN, Straight
Number of pins
4+PE
Coupling nut/screw material A
Brass
Voltage (V)
300
Current (A)
12
Cable quality
PUR
Cable color
Gray
Special features
Suitable for drag chain use
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
80
Core cross-section (mm²)
1.5
Number of Conductors
5
Key Features
Cable length (m)
8
Cable quality
PUR
Connector A
Female, 7/8″-16 UN, Straight
