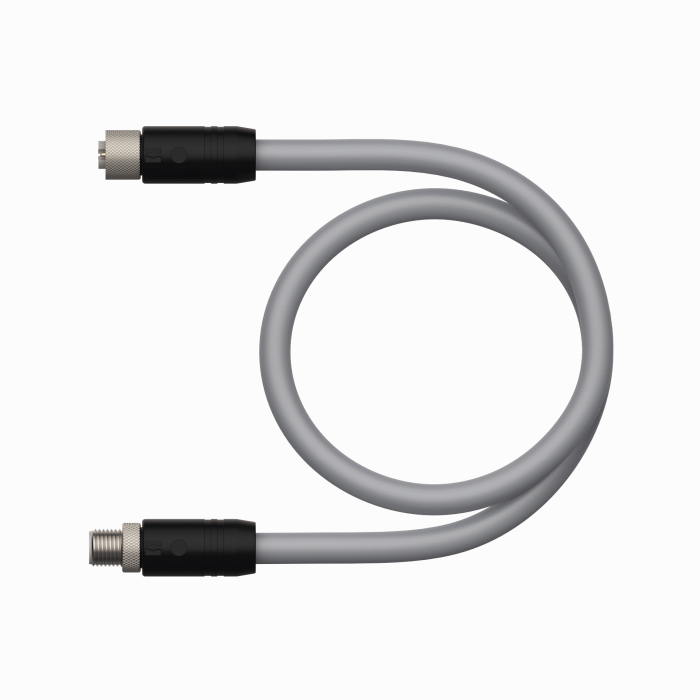

Supply Cable - M12 Power

RKS54PLB-8-RSS54PLB/TXG

Order ID no. 100023965

Cable length (m): 8
Application: Power
Design: Extension Cable

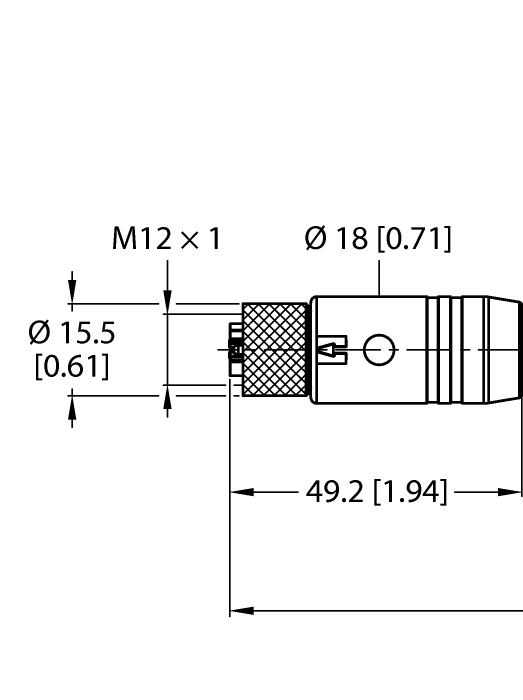

Connector A: Female, M12 × 1, Straight, L-coded
Number of pins: 4+FE
Coupling nut/screw material A: Brass

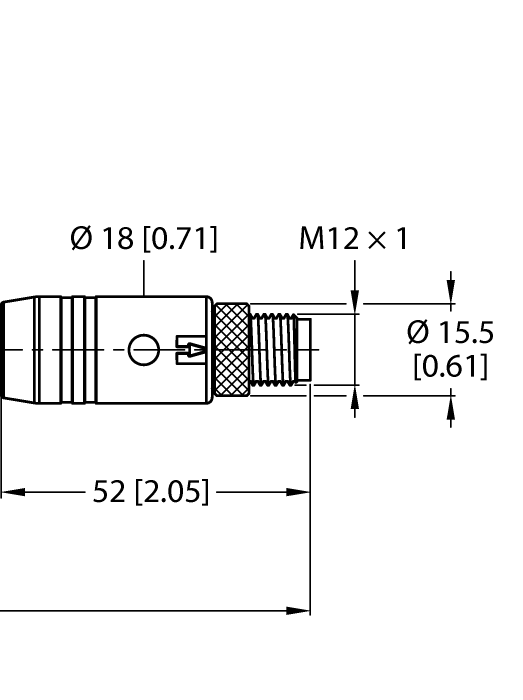

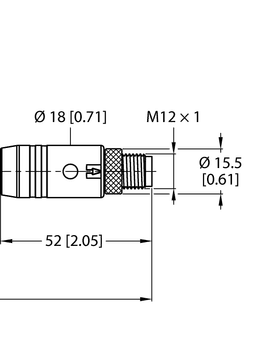

Connector B: Male, M12 × 1, Straight, L-coded
Number of Pins: 4+FE
Coupling nut/screw material B: Brass
Current (A): 16
Cable quality: PUR
Cable color: Gray
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 80
Core cross-section (mm²): 2.5
Number of Conductors: 5

In Stock
List Price	SEK 1,750.00
