TP-206.35A-CF-H1141-L300 | TURCK - Your Global Automation Partner
Temperature Detection

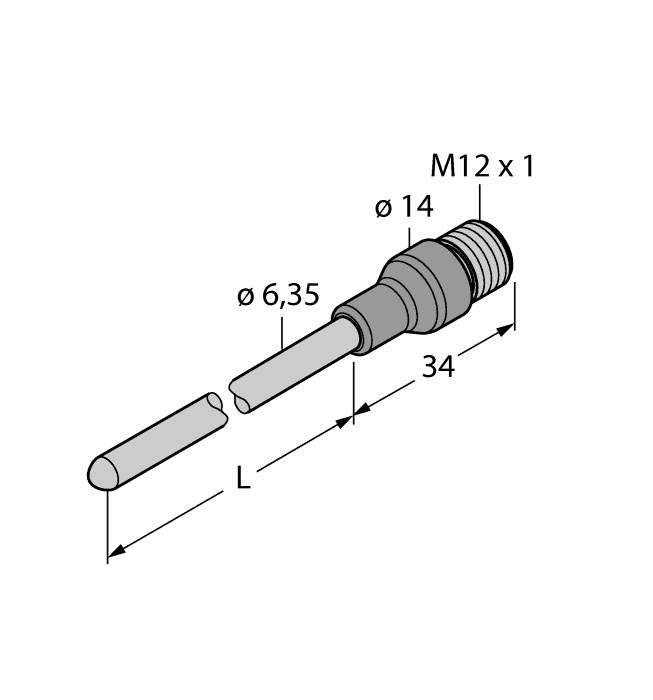

TP-206.35A-CF-H1141-L300
Order ID nr. 9910822
I lager
Prisgrupp
D2
Listpris
682,00 kr
home
Home
Loading...
Tekniska data
Protection class
IP67
Design
Temperature probe
Process connection
For compression fittings, thermowell or direct mounting
Immersion depth L (mm)
300
Detection type
medium contact
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless steel
Housing quality
1.4404 (AISI 316L)
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
120
Mounting conditions
Immersion sensor
Measuring range
-50…500 °C
Electrical output
Resistance
Nyckelfunktioner
Electrical output
Resistance
Process connection
For compression fittings, thermowell or direct mounting
Measuring range
-50…500 °C
