Q130RA-2450-AFQ | TURCK - Your Global Automation Partner
Radar Sensor
Q130RA-2450-AFQ
Order ID nr. 3806646
home
Home
Loading...
Tekniska data
Protection class
IP67
Switching element function
NO/NC programmable
Output function
PNP/NPN
Design
Rectangular
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
ABS/Polycarbonate
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
65
Max. range (mm)
40000
Beam angle
24° x 50°
Function
Proximity switch
Operating voltage
DC
Antenna connection
Internal, planar
Construction size

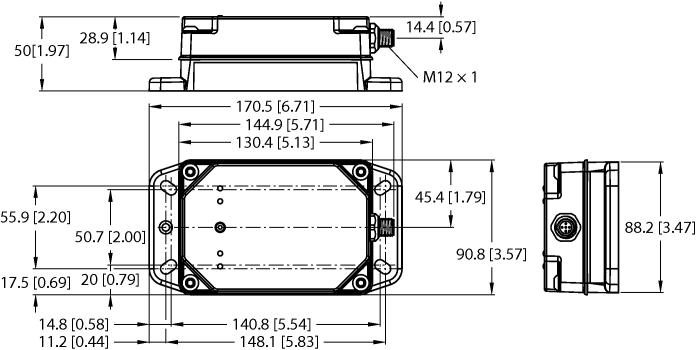

50 x 90.8 x 170.5 mm
Nyckelfunktioner
Electrical connection
Connector
Output function
PNP/NPN
Beam angle
24° x 50°
Max. range (mm)
40000
I lager
Prisgrupp
F3
Listpris
13 326,00 kr
