PT400R-26-LI3-H1140 | TURCK - Your Global Automation Partner

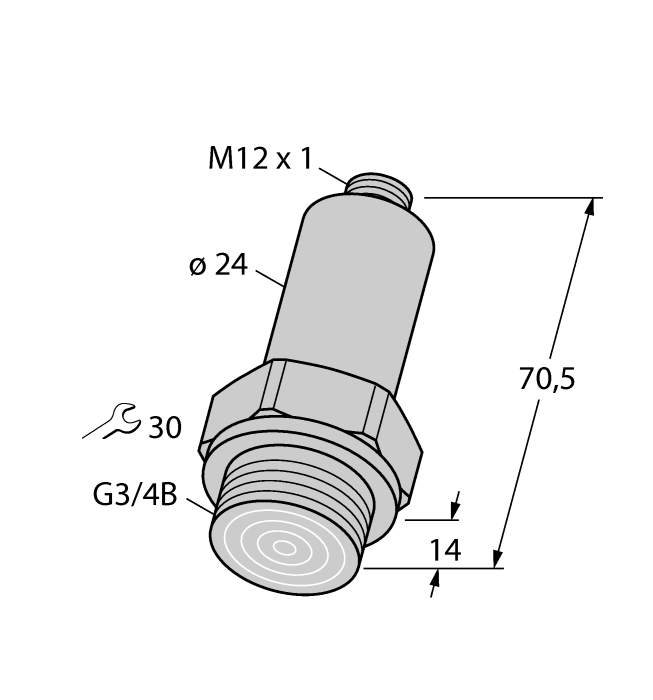

Pressure Transmitter, Front-Flush
PT400R-26-LI3-H1140
Order ID nr. 6831552
home
Home
Loading...
Tekniska data
Protection class
IP67
Output function
Analog output current
Design
Without display
Process connection
G 3/4'' front-flush
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless steel
Housing quality
1.4435 (AISI 316L)
Media temperature min. (°C)
-25
Media temperature max. (°C)
85
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
85
Operating voltage
DC
Electrical output
Current output (2-wire)
Pressure type
Relative pressure
Material pressure transducer
Stainless steel 1.4548 (AISI 630)
Pressure range
0…400 bar
Nyckelfunktioner
Electrical output
Current output (2-wire)
Process connection
G 3/4'' front-flush
Pressure range
0…400 bar
