Pressure Transmitter

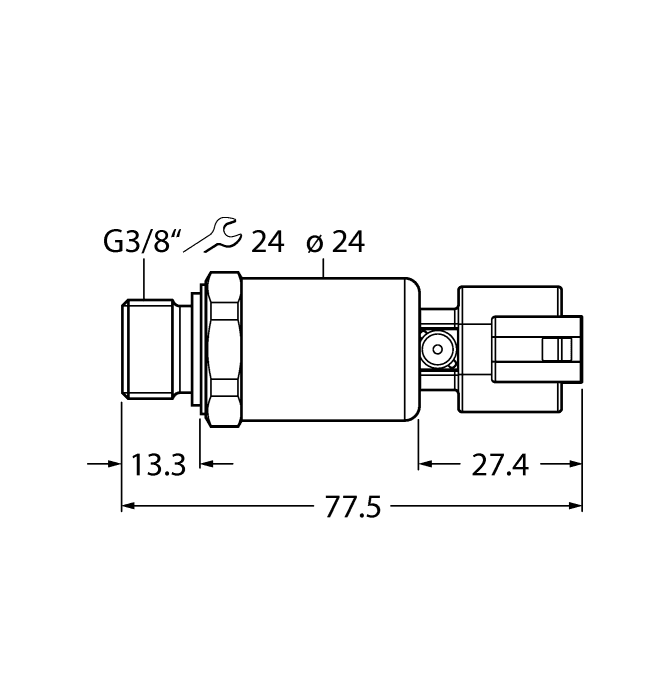

PT500R-2149-U6-DT043P
Order ID nr. 100030749
I lager
Varugrupp
J1
Listpris
1 663,00 kr
Totalt för artikeln
1 663,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Turck-Shop
Sensors
Pressure Sensors
PT500R-2149-U6-DT043P
Tekniska data
Protection class
IP69K
Output function
ratiom. 10…90%
Design
Without display
Process connection
G 3/8'' male thread
Electrical connection
Connector
Connector type
Deutsch DT04-3P
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C)
-40
Media temperature max. (°C)
125
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
100
Operating voltage
DC
Electrical output
Voltage output (3-wire)
Pressure type
Relative pressure
Material pressure transducer
Stainless steel 1.4404 (AISI 316L)
Pressure range
0…500 bar
Nyckelfunktioner
Electrical output
Voltage output (3-wire)
Process connection
G 3/8'' male thread
Pressure range
0…500 bar
