Pressure Transmitter

PT160R-2020-I2-H1143

Order ID nr. 100004667

Totalt för artikeln1 572,00 kr

Kvantitet

Protection class: IP67
Output function: Analog output current
Approvals: cULus
Design: Without display

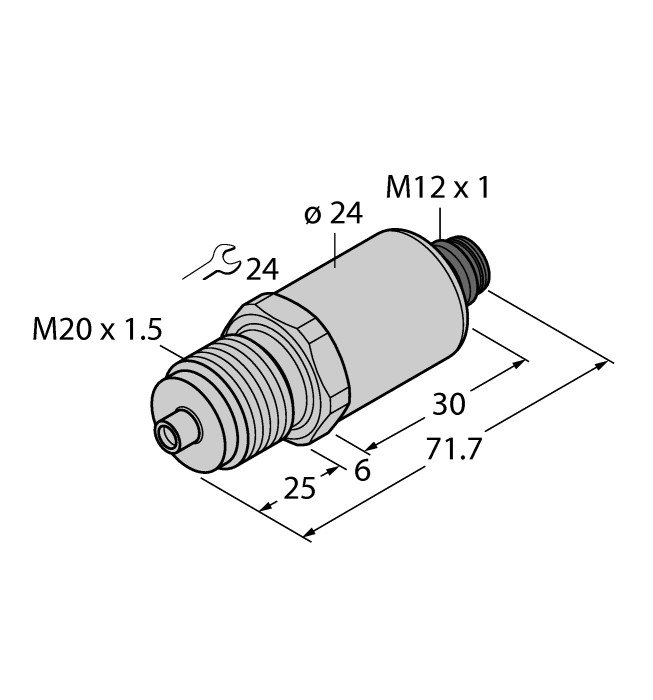

Process connection: M20 × 1.5 male thread, front sealing and manometer (combi)
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C): -40
Media temperature max. (°C): 135
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Operating voltage: DC
Electrical output: Current output (2-wire)
Pressure type: Relative pressure
Material pressure transducer: Stainless steel 1.4435 (AISI 316L)
Pressure range: 0…160 bar

Electrical output: Current output (2-wire)
Process connection: M20 × 1.5 male thread, front sealing and manometer (combi)
Pressure range: 0…160 bar
