PT0.2V-1043-U1-WM0.5 | TURCK - Your Global Automation Partner
Pressure Transmitter

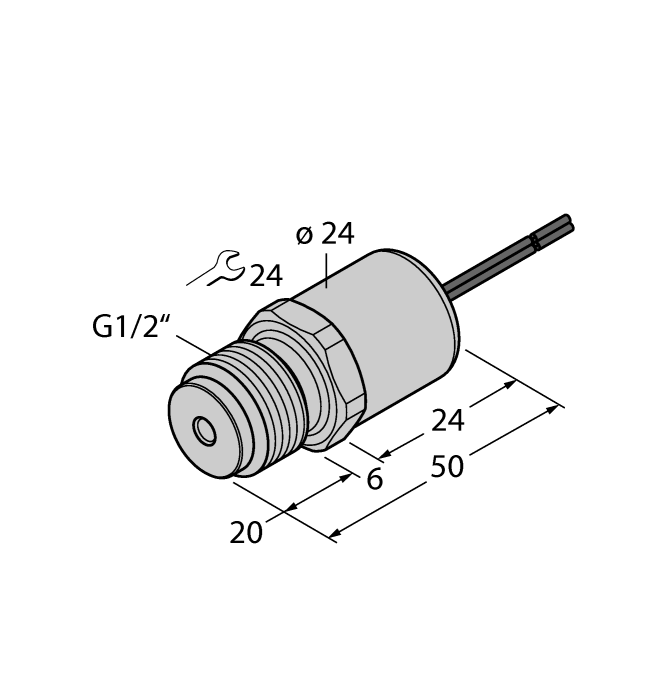

PT0.2V-1043-U1-WM0.5
Order ID nr. 100002609
home
Home
Loading...
Tekniska data
Protection class
IP65
Output function
Analog output voltage
Approvals
cULus
Design
Without display
Process connection
G 1/2” male thread (front sealing)
Electrical connection
Stranded wires
Connector type
Open end
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C)
-40
Media temperature max. (°C)
125
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
85
Operating voltage
DC
Electrical output
Voltage output (3-wire)
Pressure type
Relative pressure
Material pressure transducer
Ceramic Al₂O₃
Pressure range
-0.2…0.2 bar
Nyckelfunktioner
Electrical output
Voltage output (3-wire)
Process connection
G 1/2” male thread (front sealing)
Pressure range
-0.2…0.2 bar
