Photoelectric Sensor
Q26PXLPQ5
Order ID nr. 3017131
I lager
Varugrupp
D1
Listpris
2 952,00 kr
Totalt för artikeln
2 952,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Turck-Shop
Sensors
Photoelectric Sensors
Q26PXLPQ5
Tekniska data
Protection class
IP67
Switching element function
NO contact, dark operation
Output function
PNP
Cable length (m)
0.15
Design
Rectangular
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
Thermoplastic material
Ambient temperature min. (°C)
-10
Ambient temperature max. (°C)
55
Max. range (mm)
800
Function
Retroreflective Sensor
Light type
Red
Construction size

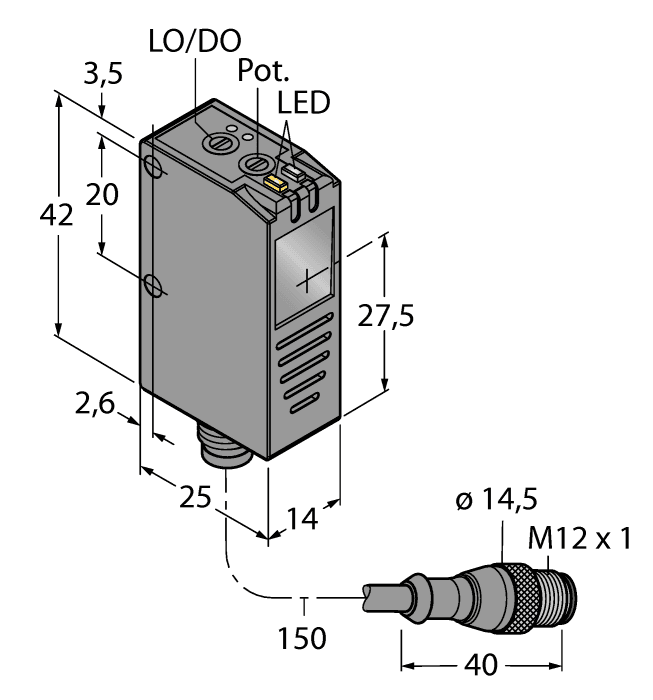

25 x 14 x 42 mm
Nyckelfunktioner
Light type
Red
Function
Retroreflective Sensor
Output function
PNP
Max. range (mm)
800
