Magnetic Field Sensor

BIM-UNT-AP6X/S97/S1165

Order ID nr. 4685735

Protection class: IP67
Switching element function: NO contact
Output function: PNP
Cable length (m): 2
Cable color: Gray
Design: Rectangular
Electrical connection: Cable
Housing material: Plastic
Housing quality: PP
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 70
Operating voltage: DC

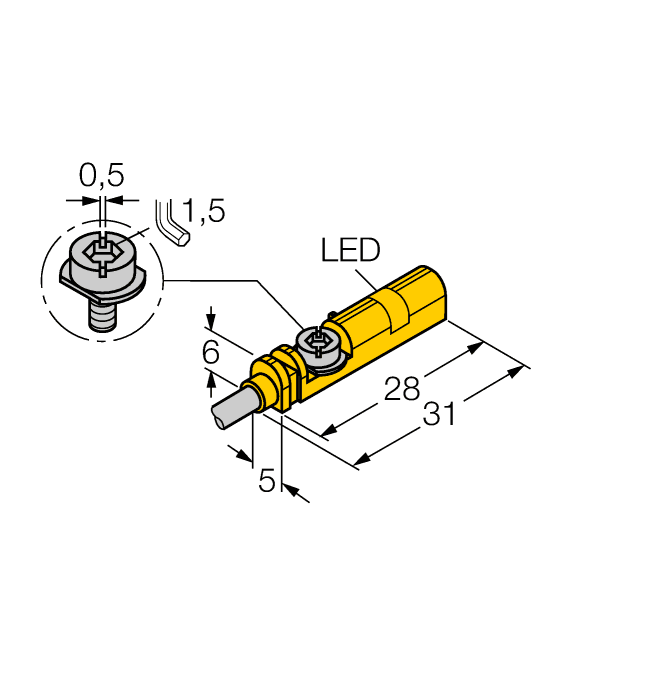

Construction size: 28 x 5 x 6 mm
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

Electrical connection: Cable
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: PNP
