Magnetic Field Sensor

BIM-UNT-0.1-UNT-2AP6X3-H1141

Order ID nr. 4685734

Protection class: IP67
Switching element function: NO contact
Output function: PNP
Cable color: Gray
Design: Rectangular
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PP
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC

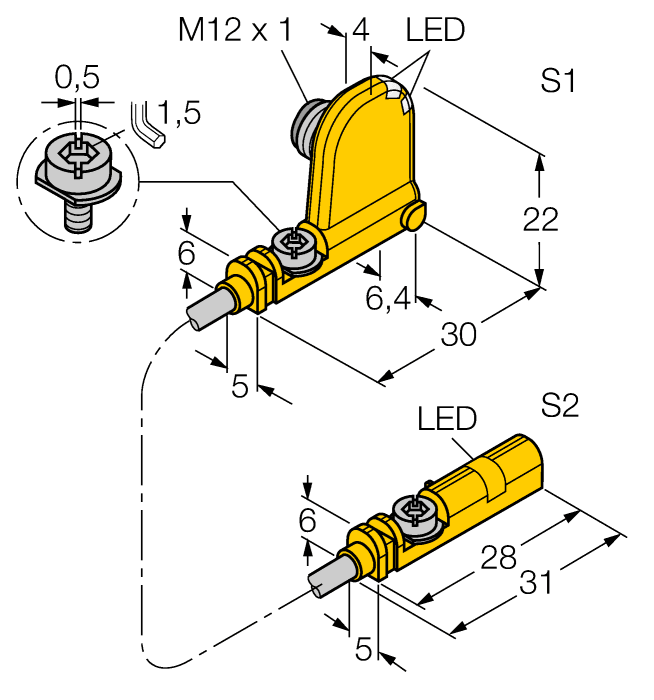

Construction size: 30 x 5 x 22 mm
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

Electrical connection: Connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: PNP
