Magnetic Field Sensor

BIM-INT-Y1X-H1141

Order ID nr. 1056801

Protection class: IP67
Output function: NAMUR
Cable length (m): 0.3
Cable color: Blue
Design: Rectangular
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PP
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC

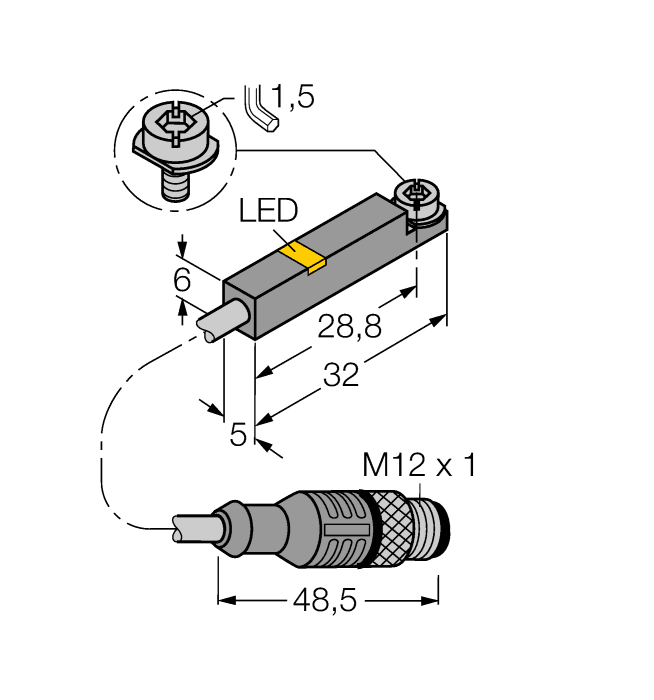

Construction size: 32 x 5 x 6 mm
Cylindrical design: Tie-rod cylinder, Tie-rod cylinder, Dovetail cylinder, external groove

Electrical connection: Connector
Cylindrical design: Tie-rod cylinder, Tie-rod cylinder, Dovetail cylinder, external groove
Output function: NAMUR
