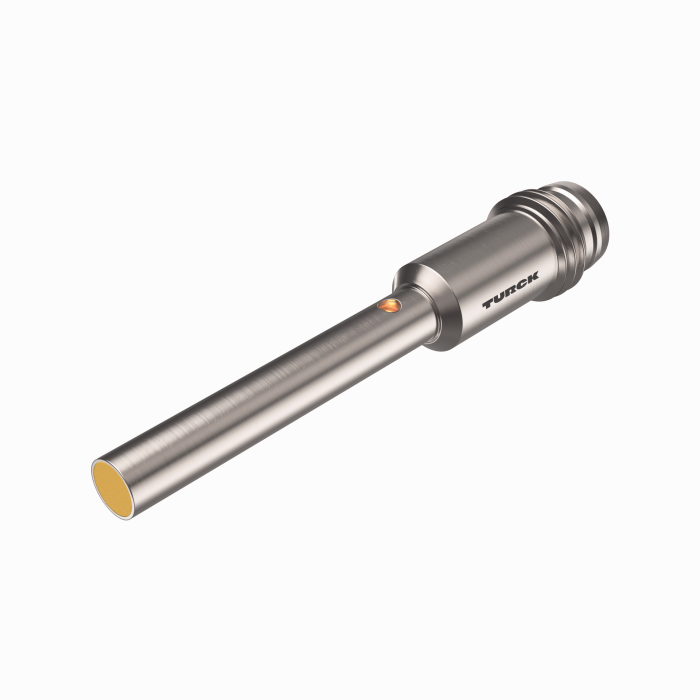

Inductive Sensor
BI1-EH04-AP6X-V1331
Order ID nr. 4608440
I lager
Varugrupp
E1
Listpris
1 127,00 kr
Totalt för artikeln
1 127,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Home
Loading...
Tekniska data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Design
Smooth barrel
Electrical connection
Connector
Connector type
M8 × 1
Housing material
Stainless steel
Housing quality
1.4305 (AISI 303)
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
1
Construction size
Ø 4 mm
Nyckelfunktioner
Electrical connection
Connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
1
