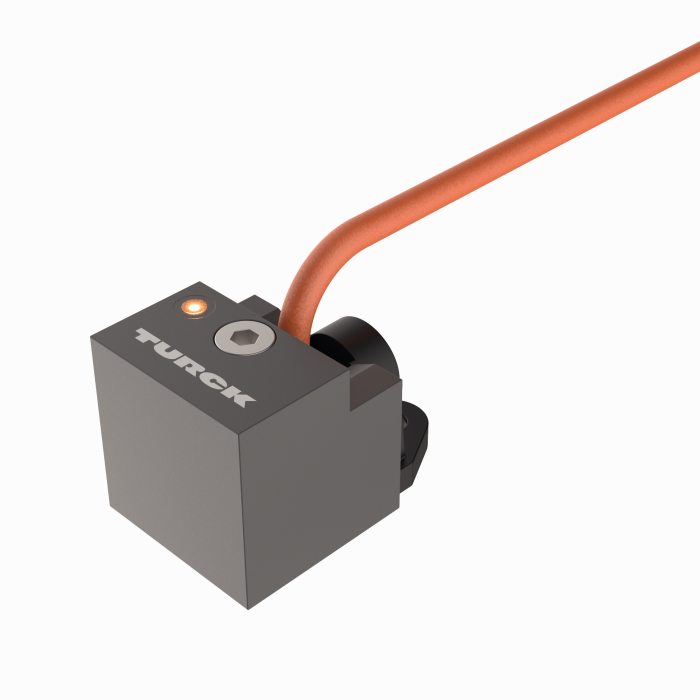

Inductive Sensor
BI10-QN26-AD4X-0.15XOR-RS4.23/S100-S1589
Order ID nr. 4470228
home
Home
Loading...
Tekniska data
Protection class
IP67
Switching element function
NO contact
Output function
2-wire
Cable length (m)
0.15
Cable color
Orange
Design
Rectangular
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PBT-GF30-V0
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
100
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
10

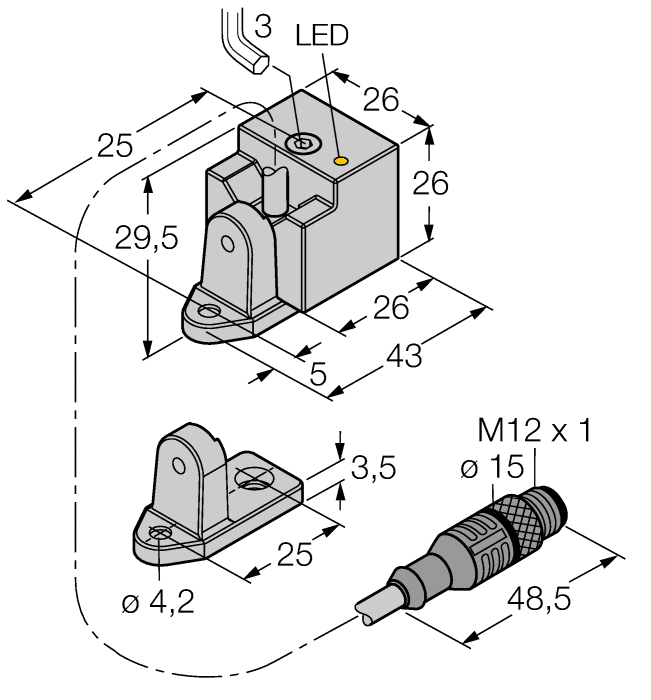

Construction size
43 x 26 x 26 mm
Nyckelfunktioner
Electrical connection
Cable with connector
Mounting conditions
Flush
Output function
2-wire
Rated switching distance (mm)
10
home
Turck-Shop
Sensors
Inductive Sensors
BI10-QN26-AD4X-0.15XOR-RS4.23/S100-S1589
I lager
Varugrupp
E1
Listpris
2 012,00 kr
Totalt för artikeln
2 012,00 kr
