Inductive Sensor

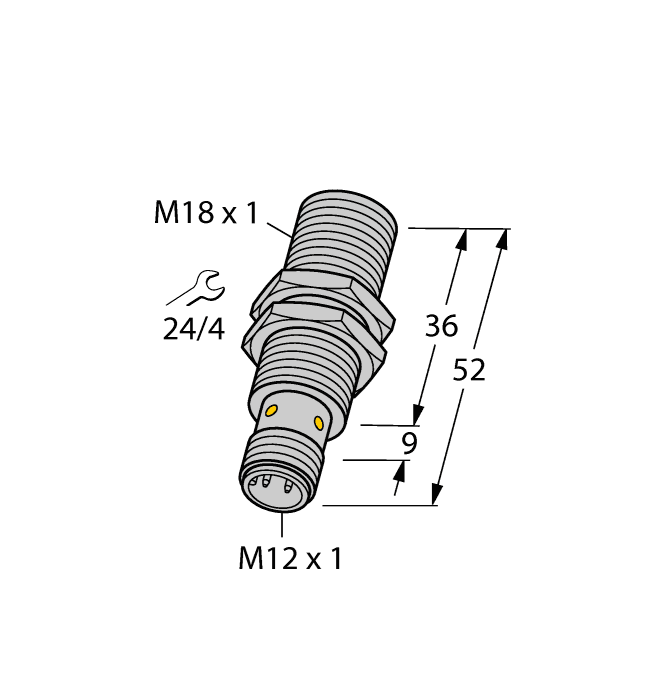

BI8U-EM18WD-VP6X-H1141/3GD
Order ID nr. 1635004
I lager
Varugrupp
E2
Listpris
1 485,00 kr
Totalt för artikeln
1 485,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
home
Turck-Shop
Sensors
Inductive Sensors
BI8U-EM18WD-VP6X-H1141/3GD
Tekniska data
Protection class
IP68, IP69K
Switching element function
Complementary contact
Output function
PNP
Design
Threaded barrel
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless steel
Housing quality
1.4404 (AISI 316L)
Ambient temperature min.
-40
Ambient temperature max.
100
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance
8
Construction size
M18 x 1
Nyckelfunktioner
Electrical connection
Connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance
8
