BI20U-CA40-AP6X2-H1141/S1590 W/BS2.0 | TURCK - Your Global Automation Partner
Inductive Sensor
BI20U-CA40-AP6X2-H1141/S1590 W/BS2.0
Order ID nr. 1627297
home
Home
Loading...
Tekniska data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Design
Rectangular
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
GD-AlSi 12
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
20

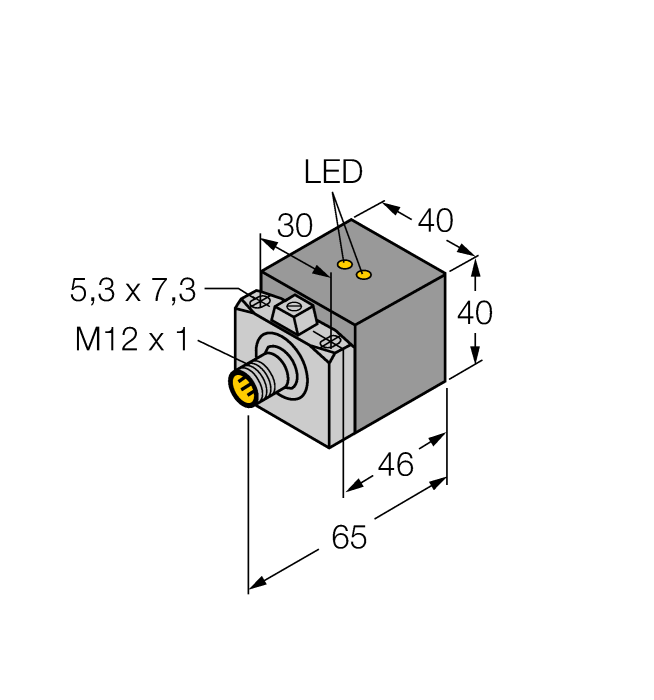

Construction size
65 x 40 x 40 mm
Nyckelfunktioner
Electrical connection
Connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
20
I lager
Prisgrupp
E1
Listpris
3 171,00 kr
