NI75U-Q80-VP4X2-H1141 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

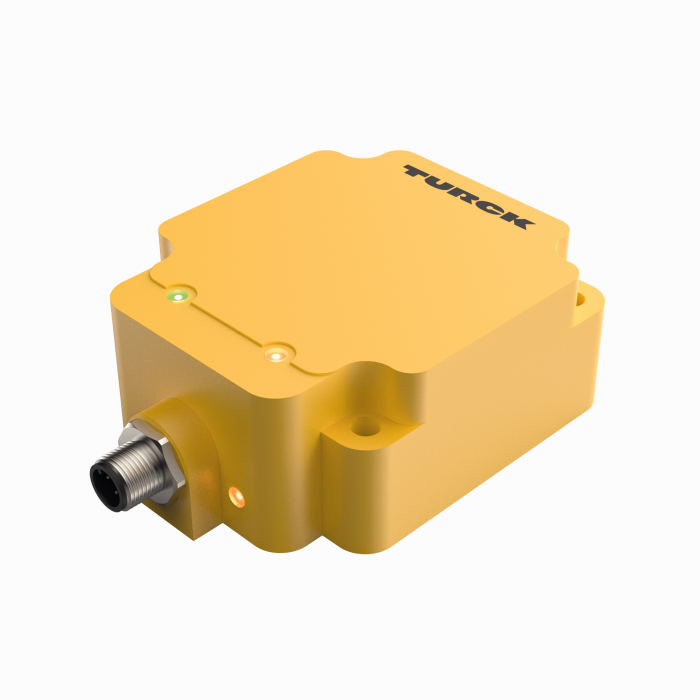

Inductive Sensor
NI75U-Q80-VP4X2-H1141
Order ID nr. 1625857
home
Home
Loading...
Tekniska data
Protection class
IP68
Switching element function
Complementary contact
Output function
PNP
Design
Rectangular
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PBT-GF30-V0
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
75

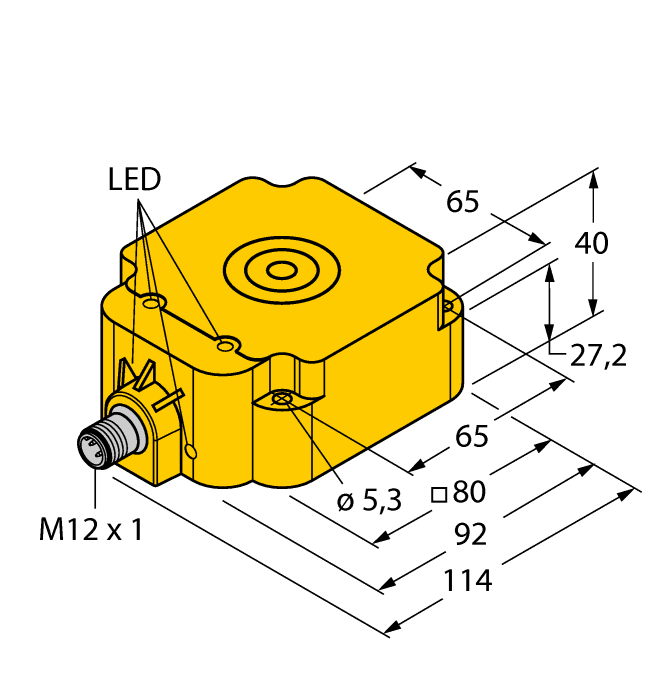

Construction size
92 x 80 x 40 mm
Nyckelfunktioner
Electrical connection
Connector
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
75
home
Turck-Shop
Sensors
Inductive Sensors
NI75U-Q80-VP4X2-H1141
I lager
Varugrupp
E2
Listpris
2 143,00 kr
Totalt för artikeln
2 143,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
