RI360P1-DSU35-CNX4-2H1650 | TURCK - Your Global Automation Partner
Inductive Angle Sensor
RI360P1-DSU35-CNX4-2H1650
Order ID nr. 1593011
home
Home
Loading...
Tekniska data
Protection class
IP68, IP69K
Design
Dual sensor for rotary actuators
Communication protocol
CANopen
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PP-GF30
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Measuring principle
Inductive
Mounting conditions
Non-flush
Operating voltage
DC
Output type
Absolute singleturn
Flange type
Flange without mounting element
Construction size

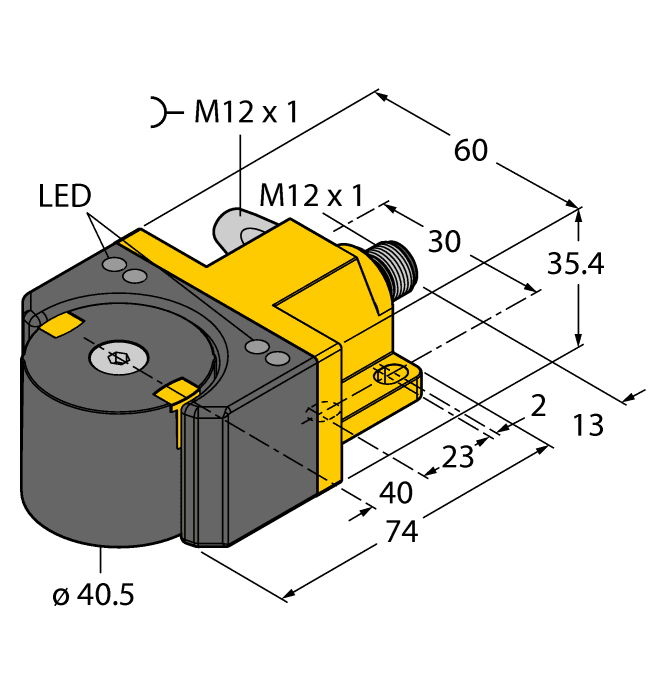

74 x 60 x 35.4 mm
Measuring range
0…360°
Nyckelfunktioner
Electrical connection
Connector
Measuring range
0…360°
Mounting conditions
Non-flush
I lager
Prisgrupp
G1
Listpris
5 368,00 kr
