BI20-Q20-AP45X2LD | TURCK - Your Global Automation Partner
Inductive Sensor
BI20-Q20-AP45X2LD
Order ID nr. 1584041
home
Home
Loading...
Tekniska data
Protection class
IP68, IP69K
Switching element function
NO contact
Output function
PNP
Cable length (m)
2
Design
Rectangular
Electrical connection
Cable
Housing material
Plastic
Housing quality
PBT-GF30-V0
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
85
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
20

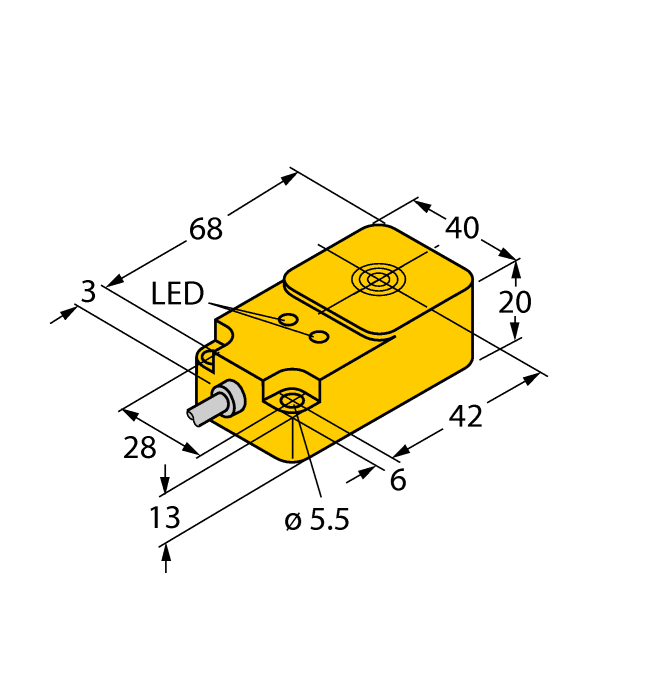

Construction size
68 x 40 x 20 mm
Nyckelfunktioner
Electrical connection
Cable
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
20
I lager
Prisgrupp
E1
Listpris
922,00 kr
