Inductive Sensor

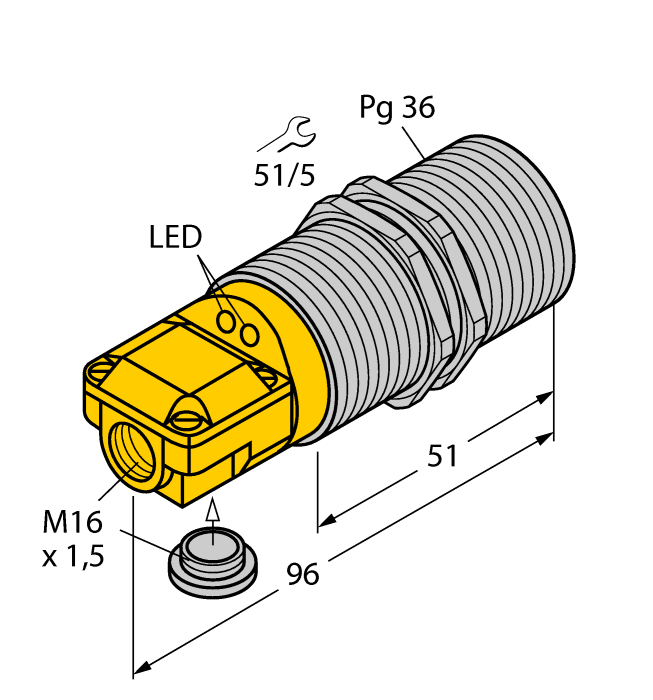

BI25-G47SR-VN4X2
Order ID nr. 15748
I lager
Varugrupp
E1
Listpris
2 186,00 kr
Totalt för artikeln
2 186,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Turck-Shop
Sensors
Inductive Sensors
BI25-G47SR-VN4X2
Tekniska data
Protection class
IP67
Switching element function
Complementary contact
Output function
NPN
Design
Threaded barrel
Electrical connection
Terminal chamber
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
25
Construction size
Pg 36
Nyckelfunktioner
Electrical connection
Terminal chamber
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
25
