Inductive Sensor

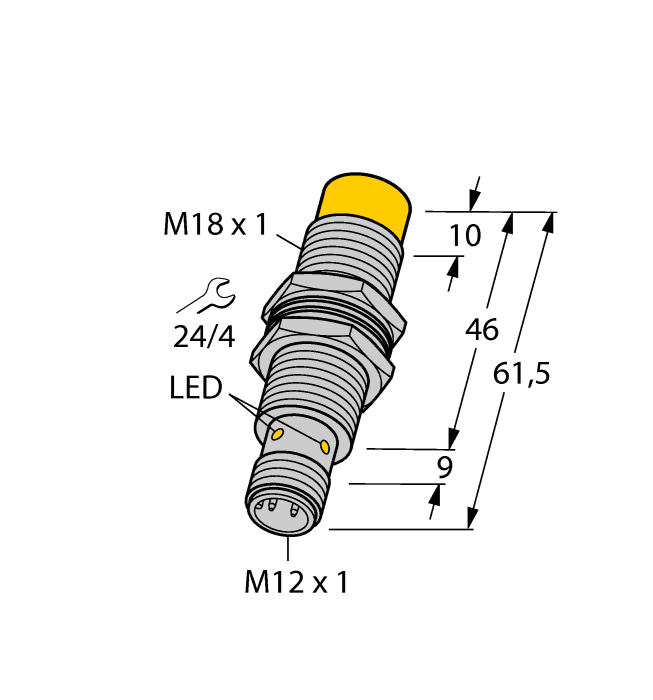

NI15U-M18M-VP6X-H1141
Order ID nr. 100000629
I lager
Varugrupp
E2
Listpris
1 087,00 kr
Totalt för artikeln
1 087,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Turck-Shop
Sensors
Inductive Sensors
NI15U-M18M-VP6X-H1141
Tekniska data
Protection class
IP68
Switching element function
Complementary contact
Output function
PNP
Design
Threaded barrel
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
85
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
15
Construction size
M18 x 1
Nyckelfunktioner
Electrical connection
Connector
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
15
