FCST-A4P-2AP8X-H1140 | TURCK - Your Global Automation Partner
Freely Rotatable FCST Flow Sensor

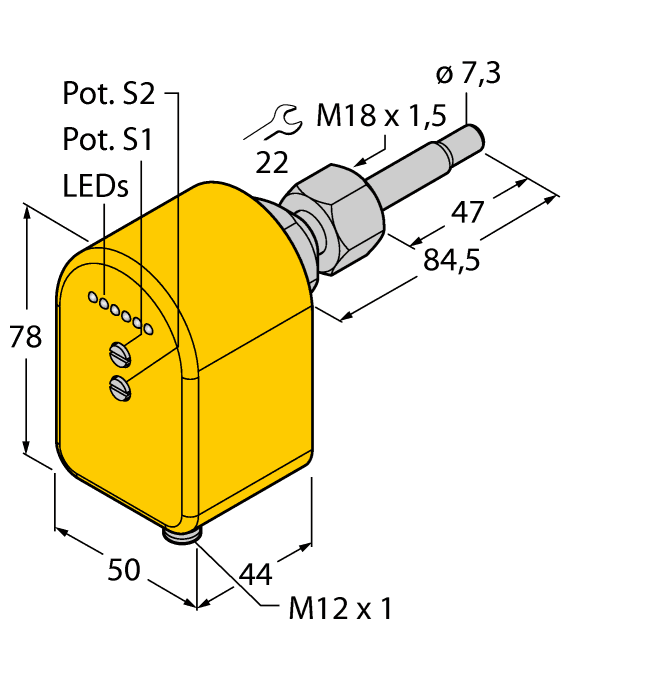

FCST-A4P-2AP8X-H1140
Order ID nr. 6870251
home
Home
Loading...
Tekniska data
Protection class
IP67
Switching element function
2 x NO contact
Output function
2 × PNP
Approvals
cULus
Design
Immersion
Process connection
M18 × 1.5 female thread
Medium
liquids
Detection type
Calorimetric
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PBT
Media temperature min. (°C)
-20
Media temperature max. (°C)
80
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
70
Mounting conditions
Immersion sensor
Operating voltage
DC
Nyckelfunktioner
Process connection
M18 × 1.5 female thread
Output function
2 × PNP
I lager
Varugrupp
D2
Listpris
4 498,00 kr
Totalt för artikeln
4 498,00 kr
