Flow Monitoring

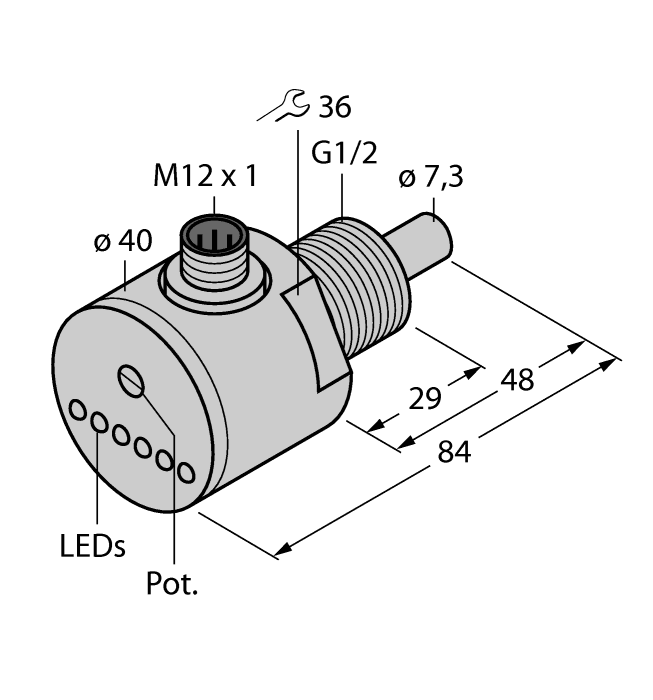

FCS-GL1/2A4-AP8X-H1141
Order ID nr. 6870204
I lager
Varugrupp
D2
Listpris
5 031,00 kr
Totalt för artikeln
5 031,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
home
Turck-Shop
Sensors
Flow Sensors/Flow Meters
FCS-GL1/2A4-AP8X-H1141
Tekniska data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Approvals
cULus
Design
Immersion
Process connection
G 1/2” long version
Medium
liquids
Detection type
Calorimetric
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless steel
Housing quality
1.4571 (AISI 316Ti)
Media temperature min.
-20
Media temperature max.
80
Ambient temperature min.
-20
Ambient temperature max.
80
Mounting conditions
Immersion sensor
Operating voltage
DC
Nyckelfunktioner
Process connection
G 1/2” long version
Output function
PNP
