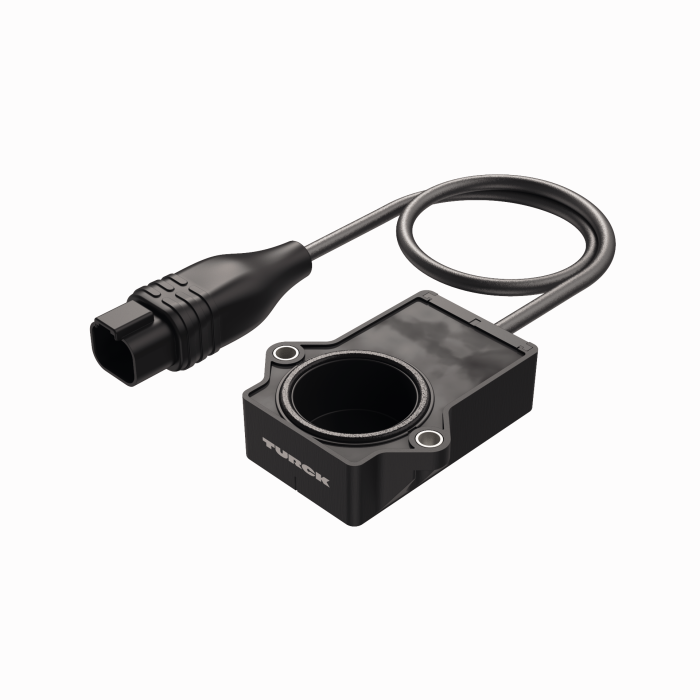

Miniature encoder
RI360P1-QR20-9F16B-0.3-DT04-4PMB
Order ID nr. 100027368
home
Home
Loading...
Tekniska data
Protection class
IP68, IP69K
Cable length (m)
0.4
Design
Rectangular
Communication protocol
SAE J1939
Electrical connection
Cable with connector
Connector type
Deutsch DT04-4PMB
Housing material
Plastic
Housing quality
Ultem
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
85
Measuring principle
Inductive
Operating voltage
DC
Output type
Absolute singleturn
Shaft Type
Blind hole shaft
Shaft diameter D (mm)
6, 6.35
Flange type
Flange without mounting element
Measuring range
0…360°
Nyckelfunktioner
Output type
Absolute singleturn
Shaft diameter D (mm)
6, 6.35
Shaft Type
Blind hole shaft
I lager
Varugrupp
G1
Listpris
1 728,00 kr
