Absolute Rotary Encoder - Multiturn

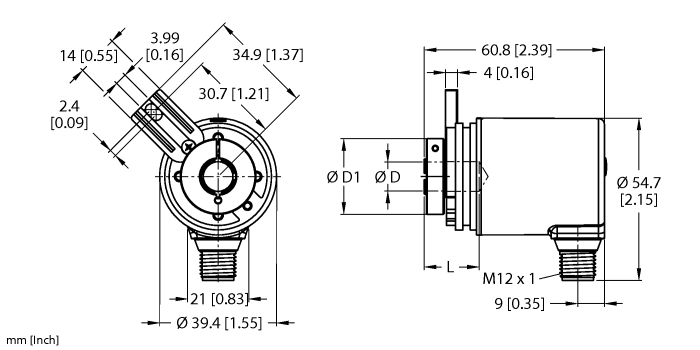

REM-102B10T-9F32B-H1151
Order ID nr. 100023553
I lager
Varugrupp
F3
Listpris
5 199,00 kr
Totalt för artikeln
5 199,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Turck-Shop
Sensors
Encoders
REM-102B10T-9F32B-H1151
Tekniska data
Protection class
IP67
Communication protocol
SAE J1939
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Die-cast zinc
Ambient temperature min.
-40
Ambient temperature max.
80
Measuring principle
Magnetic
Output type
Absolute multiturn
Shaft Type
Blind hole shaft
Shaft diameter D (mm)
10
Flange diameter
36
Flange type
Flange with mounting element
Nyckelfunktioner
Output type
Absolute multiturn
Flange diameter
36
Shaft diameter D (mm)
10
Shaft Type
Blind hole shaft
