BC8-Q10-RN6X2-0.15-SSFP3/S90 | TURCK - Your Global Automation Partner
Capacitive Sensor
BC8-Q10-RN6X2-0.15-SSFP3/S90
Order ID nr. 2620113
home
Home
Loading...
Tekniska data
Protection class
IP67
Switching element function
NC contact
Output function
NPN
Cable length (m)
0.15
Design
Rectangular
Electrical connection
Connector
Connector type
M8 × 1
Housing material
Plastic
Housing quality
PBT-GF30-V0
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Measuring principle
Capacitive
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
8

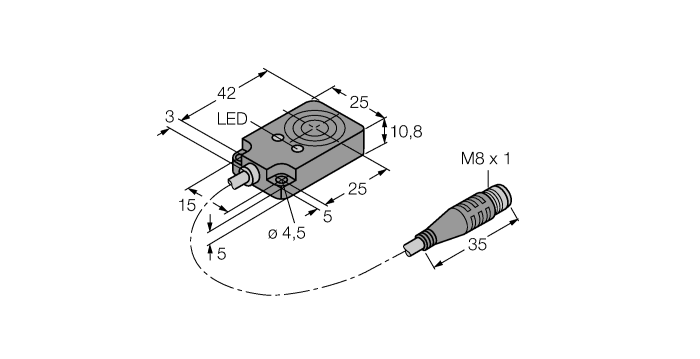

Construction size
42 x 25 x 10.8 mm
Nyckelfunktioner
Electrical connection
Connector
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
8
I lager
Varugrupp
E1
Listpris
1 591,00 kr
