BC5-Q08-AN6X2/S250 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

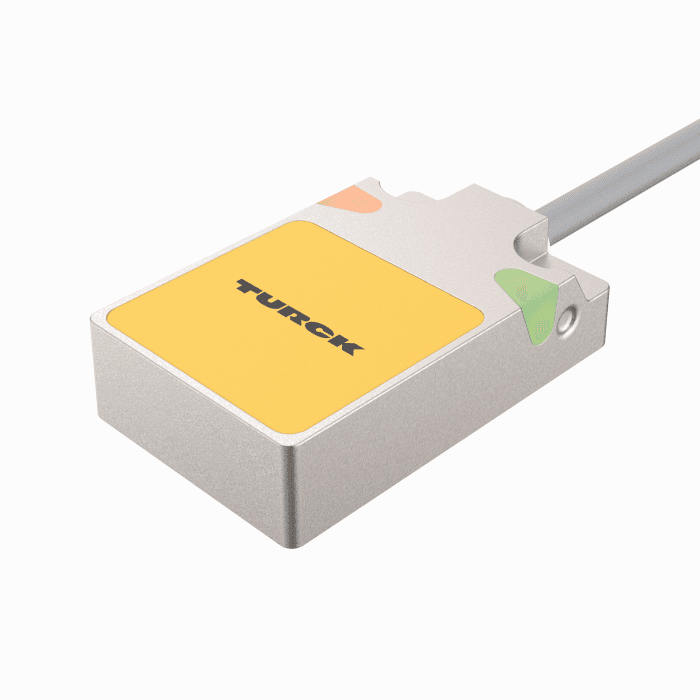

Capacitive Sensor
BC5-Q08-AN6X2/S250
Order ID nr. 26201
I lager
Prisgrupp
E1
Listpris
1 259,00 kr
home
Home
Loading...
Tekniska data
Protection class
IP68
Switching element function
NO contact
Output function
NPN
Cable length (m)
2
Approvals
UL
Design
Rectangular
Electrical connection
Cable
Housing material
Metal
Housing quality
Zamak
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Measuring principle
Capacitive
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
5

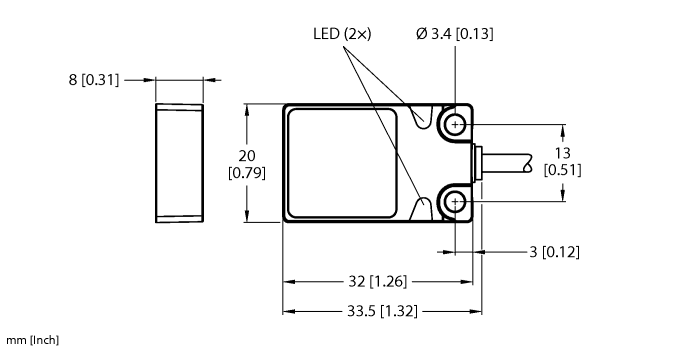

Construction size
32 x 20 x 8 mm
Nyckelfunktioner
Electrical connection
Cable
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
5
