NCT3-M08-IOL-V1131 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

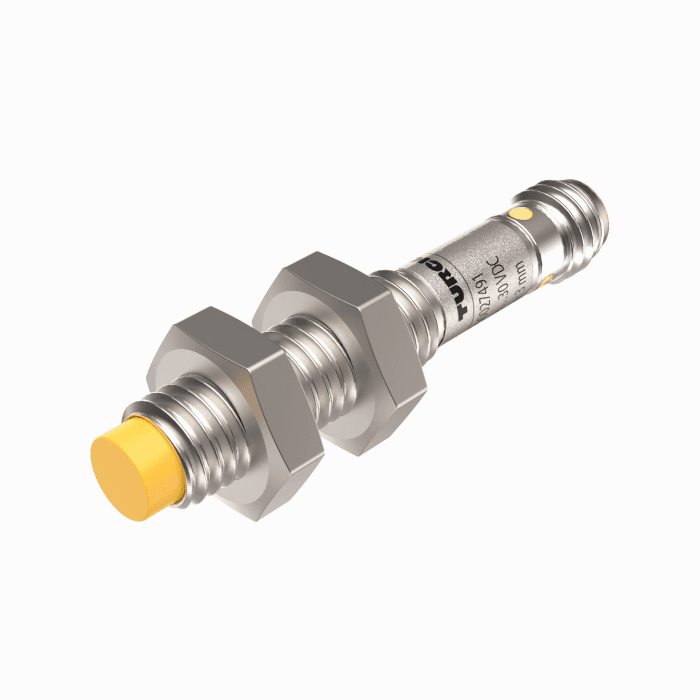

Capacitive Sensor
NCT3-M08-IOL-V1131
Order ID nr. 100027491
I lager
Prisgrupp
E1
Listpris
1 715,00 kr
home
Home
Loading...
Tekniska data
Protection class
IP67
Switching element function
NO/NC programmable
Output function
PNP/NPN
Design
Threaded barrel
Medium
liquids, Bulk goods
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
M8 × 1
Housing material
Metal
Housing quality
Nickel-plated brass
Media temperature min. (°C)
-25
Media temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Measuring principle
Capacitive
Mounting conditions
Flush/Non-flush
Rated switching distance (mm)
3
Construction size
M8 x 1
Nyckelfunktioner
Electrical connection
Connector
Mounting conditions
Flush/Non-flush
Output function
PNP/NPN
Rated switching distance (mm)
3
