BCE10-S30-VN6X-H1141 | TURCK - Your Global Automation Partner
Capacitive Sensor

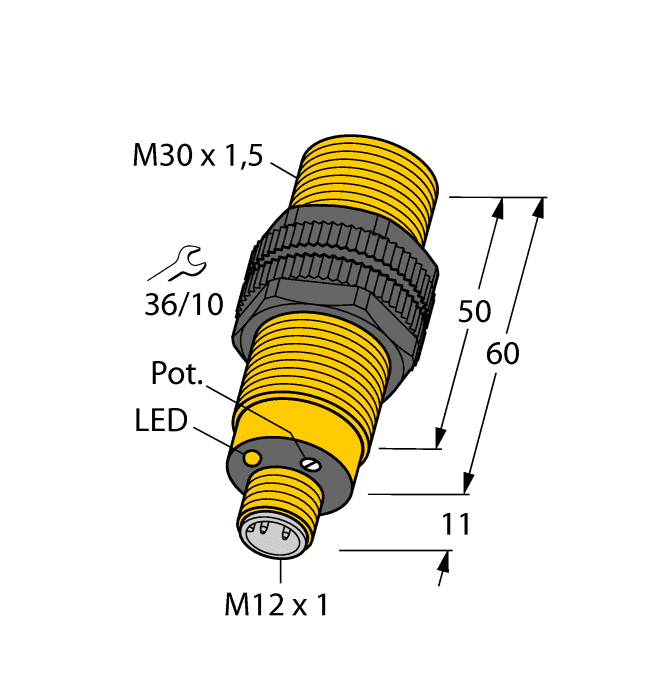

BCE10-S30-VN6X-H1141
Order ID nr. 100026663
home
Home
Loading...
Tekniska data
Protection class
IP65
Switching element function
Complementary contact
Output function
NPN
Approvals
UL
Design
Threaded barrel
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PA6-GF30
Ambient temperature min. (°C)
-10
Ambient temperature max. (°C)
60
Measuring principle
Capacitive
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
15
Construction size
M30 x 1.5
Nyckelfunktioner
Electrical connection
Connector
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
15
I lager
Prisgrupp
E1
Listpris
1 122,00 kr
