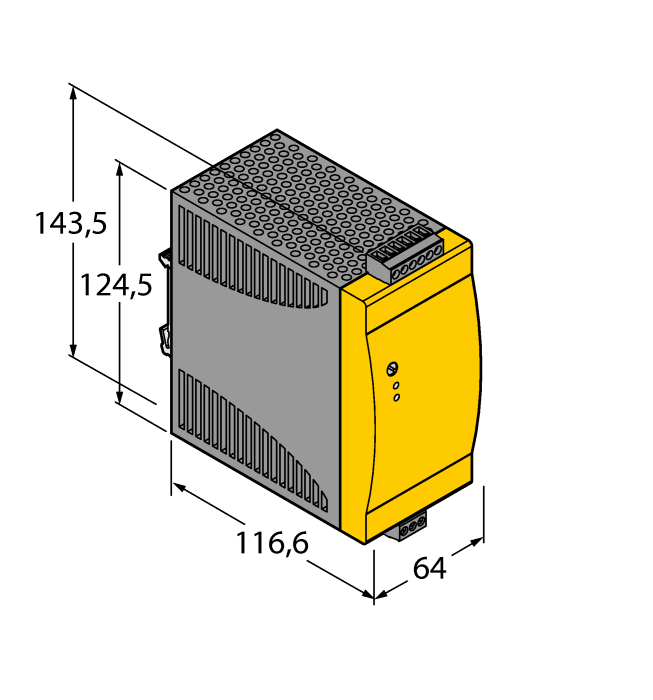

Switching Power Supply Module

IM82-24-5.0

Order ID nr. 7545042

Protection class: IP20
Approvals: UL
Electrical connection: Screw terminals
Housing material: Metal
Housing quality: Polycarbonate/ABS
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Power supply: 230 VUC
Nominal output voltage (V): 24
Nominal current (A): 5
Parallel mode: yes, switchover initiated by a switch, max. 3 devices each with 90 % load current
Internal fuse: T 3.15 A/250 VAC
Power Good Output: yes
Ex version: no
Approvals: cULus
Digital output: Relay output
