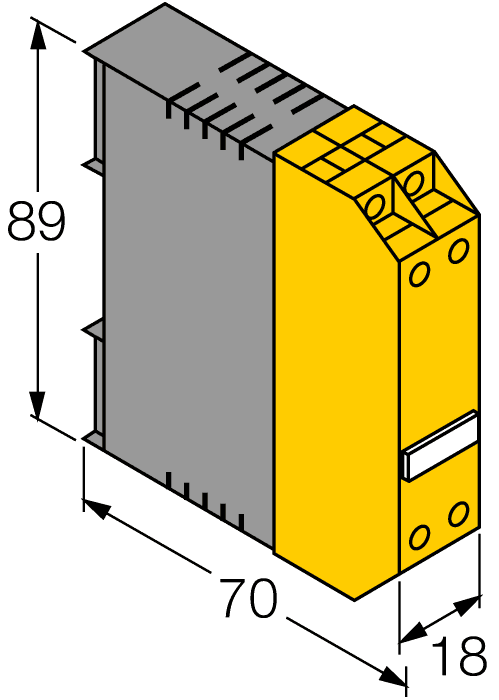

Level controller

MK91-R11/24VDC

Order ID nr. 7525202

Protection class: IP20
Output function: Min./Max.
Approvals: UL
Electrical connection: 4 × 2-pin flat terminals with self-lifting pressure plates
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 60
Power supply: 24 VDC
Number of channels: 1
Ex version: no
Signal type: Resistance input
Nominal voltage: 24 VDC
Approvals: UL
Digital output: Relay output
