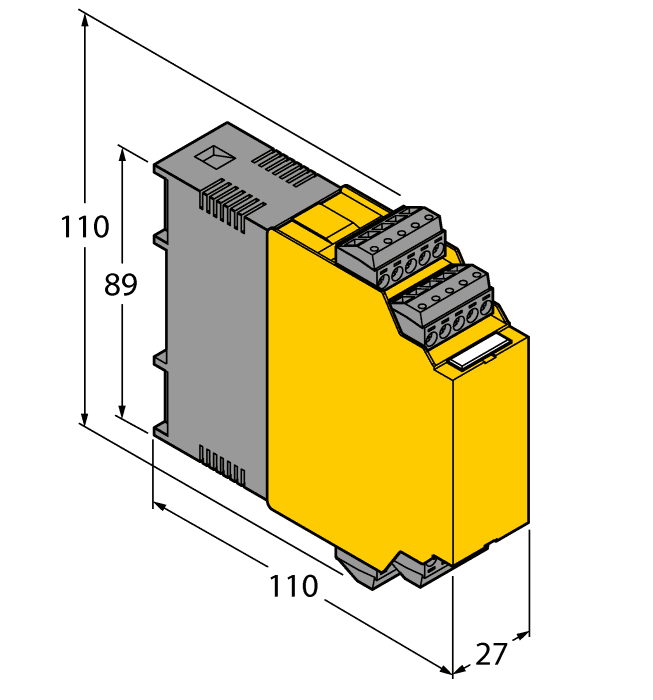

Analog Signal Isolator

IM35-11EX-HI

Order ID nr. 7506517

I lager
Listpris	2 734,00 kr

Protection class: IP20
Approvals: ATEX, TR CU, Metrological Approval Russia
Electrical connection: 4 × 5-pin removable terminal blocks with test socket, reverse polarity protected, screw terminal
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Power supply: widerange
Number of channels: 1
Ex version: yes
Signal type: Analog output (HART transparent)
Nominal voltage: Wide voltage range
Approvals: ATEX, TR CU
