Laddar

Level controller

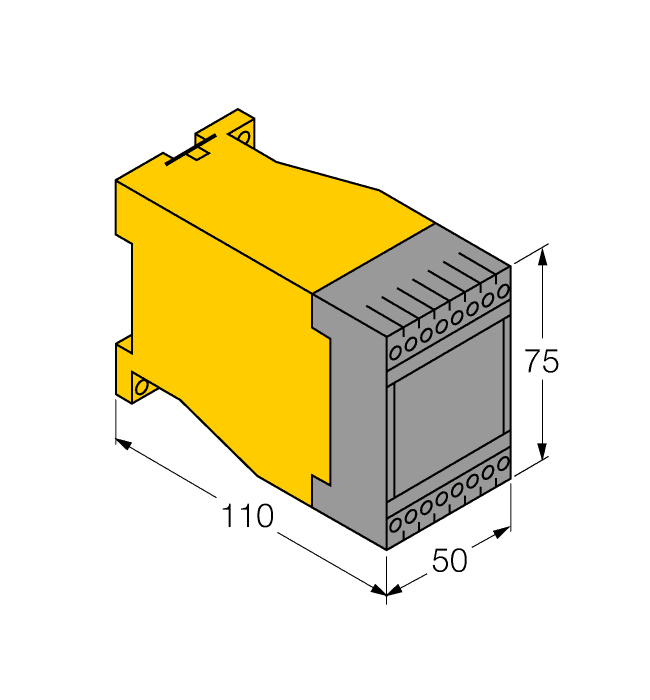

MS91-12-R

Order ID nr. 5220110

Protection class: IP20
Output function: Min./Max. two-point control
Approvals: GOST
Electrical connection: 2 × 8-pin removable terminal blocks, reverse polarity protected, screw terminal
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 60
Power supply: 230 VUC
Number of channels: 1
Ex version: no
Signal type: Resistance input
Nominal voltage: Wide voltage range
Approvals: GOST
Digital output: Relay output
