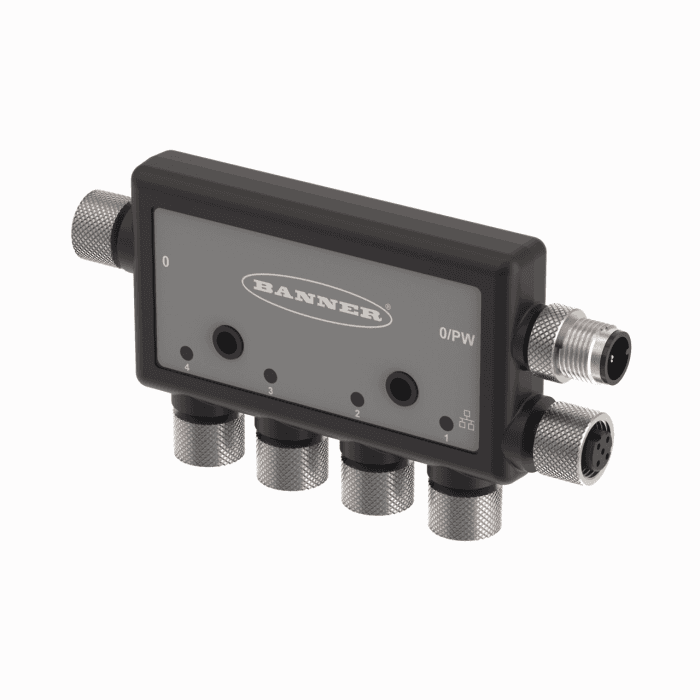

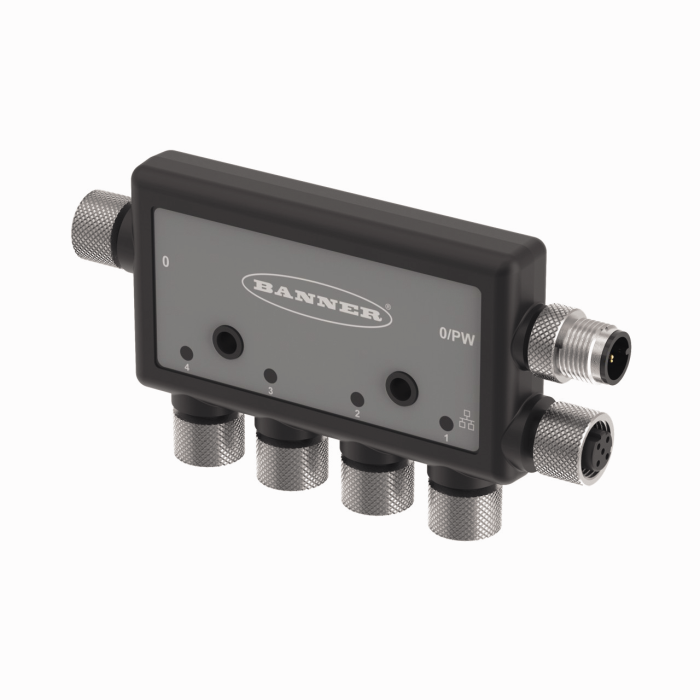

Network Controller

DXMR90-X1

Order ID nr. 3812240

Protection class: IP67
Approvals: CE, UKCA
Design: Rectangular
Communication protocol: RS485, Modbus RTU, EtherNet/IP, Modbus TCP, PROFINET
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PC
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 70
Operating voltage: DC
Antenna connection: No radio participant
Runs with battery: No
Cascadable: Yes

Communication protocol: RS485, Modbus RTU, EtherNet/IP, Modbus TCP, PROFINET
