TBEN-S2-2RFID-4DXP | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

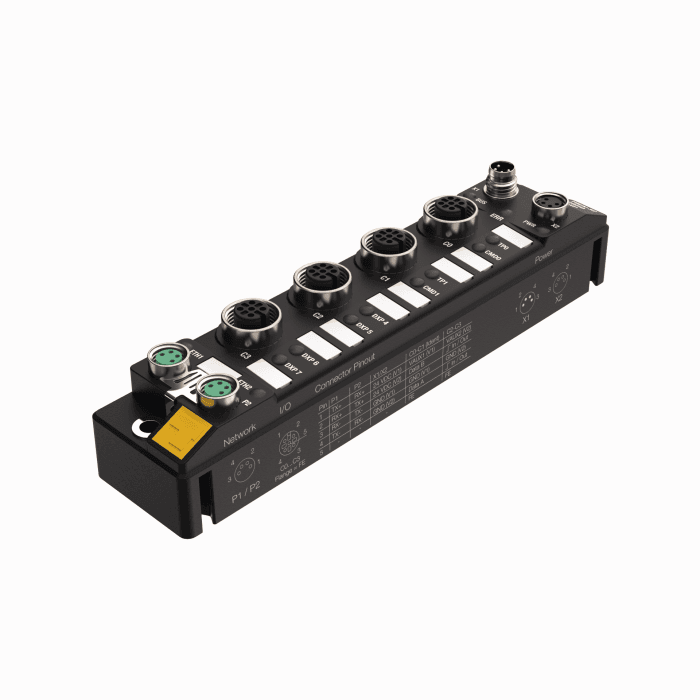

Compact Multiprotocol RFID Module for Ethernet
TBEN-S2-2RFID-4DXP
Order ID nr. 6814029
I lager
Prisgrupp
C1
Listpris
8 015,00 kr
home
Home
Loading...
Tekniska data
Protection class
IP65, IP67, IP69K
Network protocol
Modbus TCP, EtherNet/IP, PROFINET
Cable length (m)
50
Approvals
ATEX Zone 2/22, cULus, IECEx, CCC
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
70
Operating voltage
DC
Number of channels
6
Installation area
non-Ex
Output voltage
24 VDC from potential group V2
Connection technology signal
M12
Signal type
RFID, Digital input, Digital input/output, Digital output
Connection technology Ethernet
2 x M8, 4-pin, D-coded
Transmission rate Ethernet
10/100 Mbps
Nyckelfunktioner
Network protocol
Modbus TCP, EtherNet/IP, PROFINET
Number of channels
6
Protection class
IP65, IP67, IP69K
