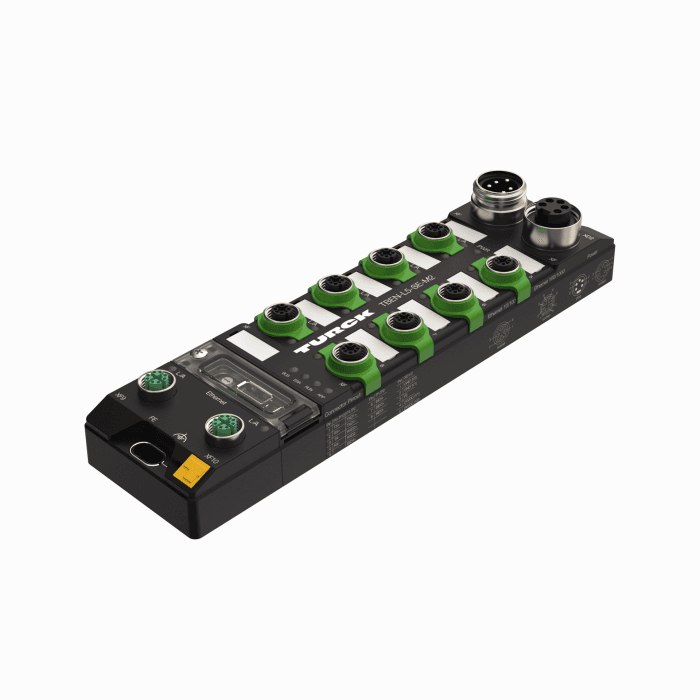

Managed Ethernet Switch

TBEN-L5-SE-M2

Order ID nr. 100004425

Protection class: IP65, IP67, IP69K
Network protocol: Modbus TCP, EtherNet/IP, PROFINET
Approvals: ATEX Zone 2/22, cULus, IECEx, CCC
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 70
Number of channels: 16
Installation area: zone 2, zone 22

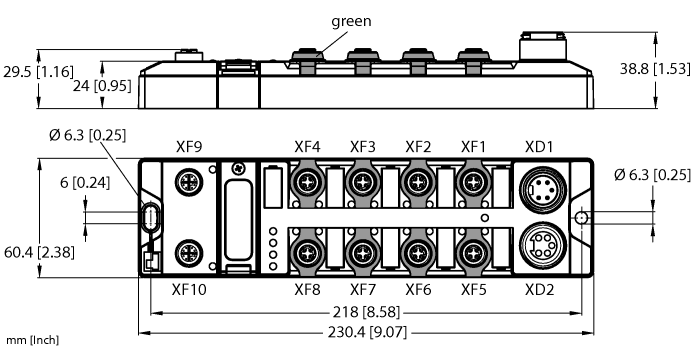

Connection technology Ethernet: 2 × M12, 8-pin, X-coded, 8 × M12, 4-pin, D-coded
Number of Ethernet ports: 10 ports
Transmission rate Ethernet: 10/100/1000 Mbps
