EC-FS3-0.5/20 | TURCK - Your Global Automation Partner

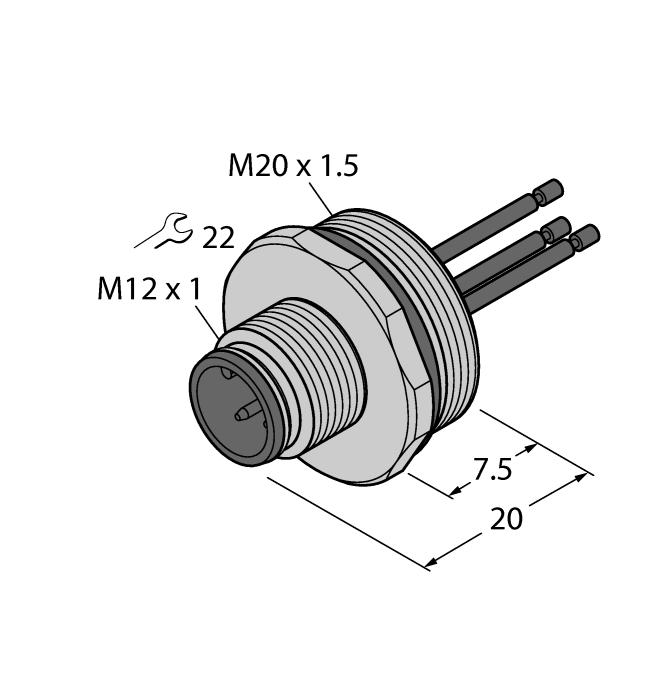

Male Receptacle with Stranded Wires, Front-mounted
EC-FS3-0.5/20
Order ID nr. 6935736
I lager
Prisgrupp
K1
Listpris
186,00 kr
home
Home
Loading...
Tekniska data
Application
Signal
Connector A
Male, M12 × 1, Straight, A-coded
Number of pins
3
Receptacle housing material A
Brass
Screw-in thread
M20 × 1.5
Voltage (V)
250
Current (A)
4
Approvals
CE
Core cross-section (mm²)
0.34
Connection mode
Wire connection
Number of Conductors
3
Nyckelfunktioner
Connector A
Male, M12 × 1, Straight, A-coded
Number of pins
3
Receptacle housing material A
Brass
Screw-in thread
M20 × 1.5
