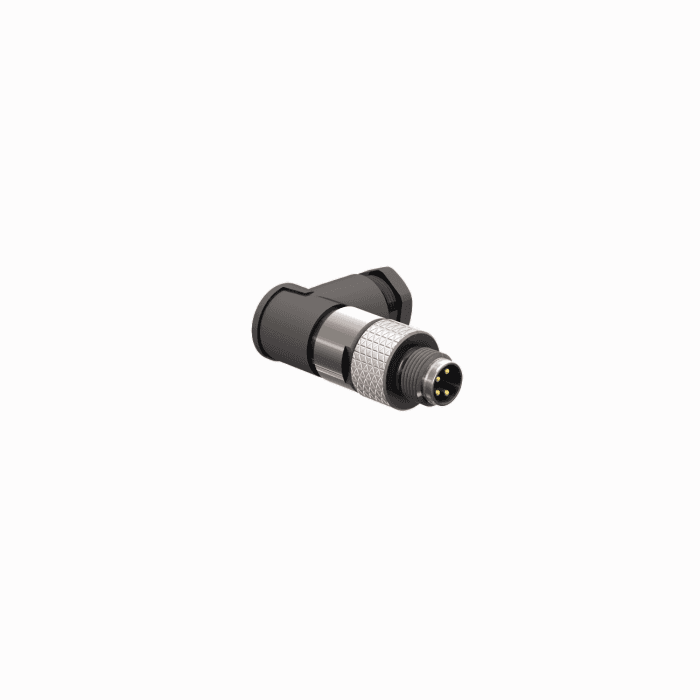

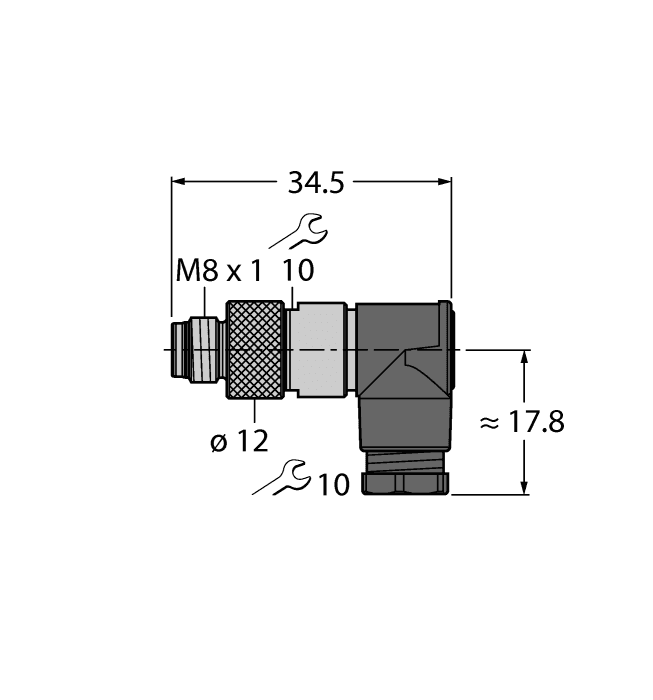

Field-Wireable Connector
BS5231-0
Order ID nr. 6901110
I lager
Varugrupp
K2
Listpris
130,00 kr
Totalt för artikeln
130,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Home
Loading...
Tekniska data
Application
Signal
Connector A
Male, M8 × 1, Angled
Number of pins
3
Coupling nut/screw material A
Die-cast Zinc
Screw-in thread
M11 × 0.75
Voltage
60
Current
4
Approvals
cULus recognized
Ambient temperature min.
-40
Ambient temperature max.
85
Connection mode
Solder contact
Nyckelfunktioner
Connection mode
Solder contact
Connector A
Male, M8 × 1, Angled
Number of pins
3
Application
Signal
