RKC 4.4T-5-RSM 40/S3520 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Actuator and Sensor Cable
RKC 4.4T-5-RSM 40/S3520
Order ID nr. UX14185
home
Home
Loading...
Tekniska data
Cable length (m)
5
Application
Signal
Design
Extension Cable

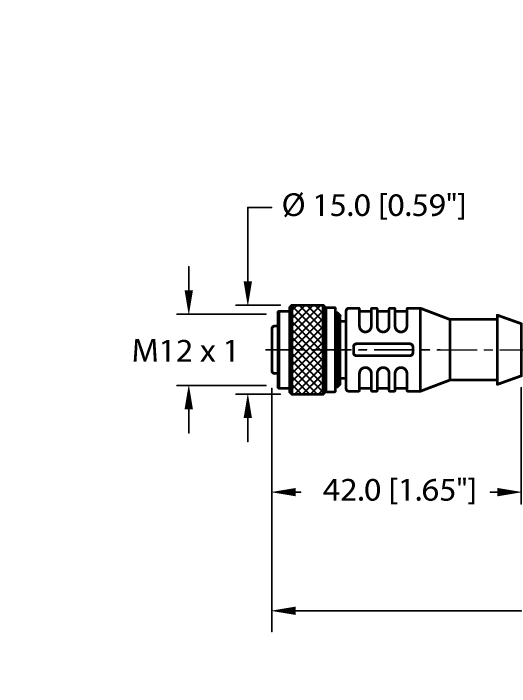

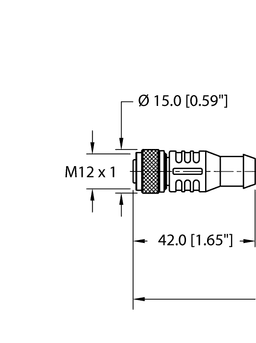

Connector A
Female, M12 × 1, Straight, A-coded
Number of pins
4
Coupling nut/screw material A
Brass

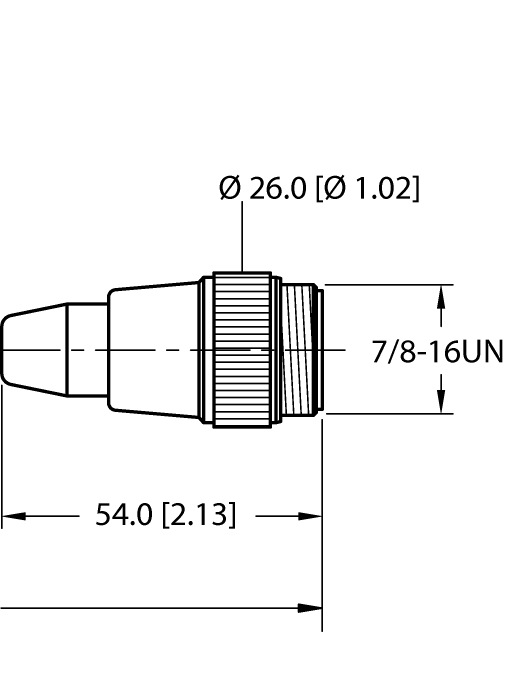

Connector B
Male, 7/8″-16 UN, Straight
Number of Pins
4
Coupling nut/screw material B
Brass
Voltage (V)
250
Current (A)
4
Cable quality
PVC
Cable color
Yellow
Approvals
UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
Ambient temperature min. (°C)
5
Ambient temperature max. (°C)
105
Number of Conductors
4
Nyckelfunktioner
Cable length (m)
5
Cable quality
PVC
Connector A
Female, M12 × 1, Straight, A-coded
Connector B
Male, 7/8″-16 UN, Straight
I lager
Prisgrupp
K1
Listpris
981,00 kr
home
Turck-Shop
Connectivity
2-Way Splitters
RKC 4.4T-5-RSM 40/S3520
Totalt för artikeln
981,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
