WSC-WKC5701-5M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

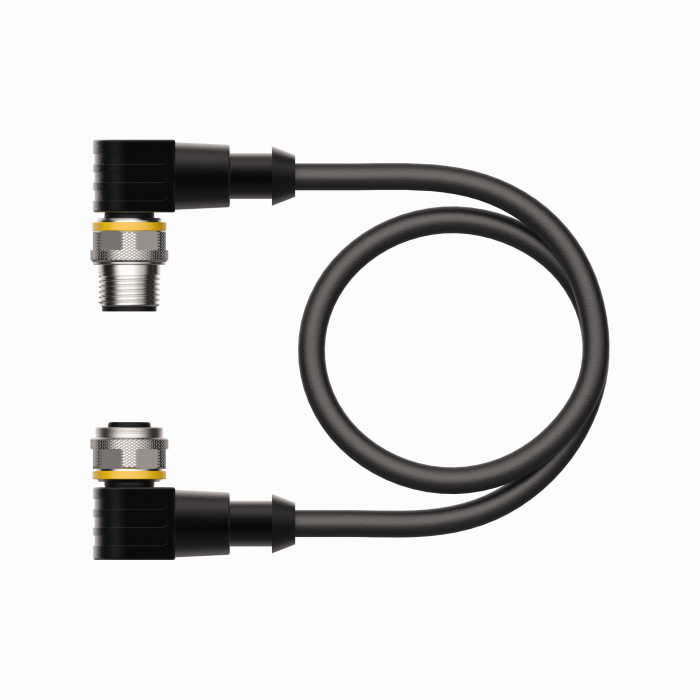

Bus Cable for CAN (DeviceNet, CANopen)
WSC-WKC5701-5M
Order ID nr. 6935600
home
Home
Loading...
Tekniska data
Network protocol
DeviceNet, CANopen
Cable length
5
Application
Data
Design
Extension Cable
Connector A
Male, M12 × 1, Angled, A-coded
Number of pins
5
Coupling nut/screw material A
Brass
Connector B
Female, M12 × 1, Angled, A-coded
Number of Pins
5
Coupling nut/screw material B
Brass
Voltage
60
Current
4
Cable quality
PUR
Cable color
Anthracite
Approvals
UL
Ambient temperature min.
-25
Ambient temperature max.
60
Core cross-section
0.25
Number of Conductors
2
Nyckelfunktioner
Cable length
5
Cable quality
PUR
Connector A
Male, M12 × 1, Angled, A-coded
Connector B
Female, M12 × 1, Angled, A-coded
