RKSV12T-10-RKSV12T/TFW | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Actuator And Sensor Cable, PP-EPDM
RKSV12T-10-RKSV12T/TFW
Order ID nr. 6636412
home
Home
Loading...
Tekniska data
Cable length (m)
10
Application
Washdown (F&B)
Design
Extension Cable

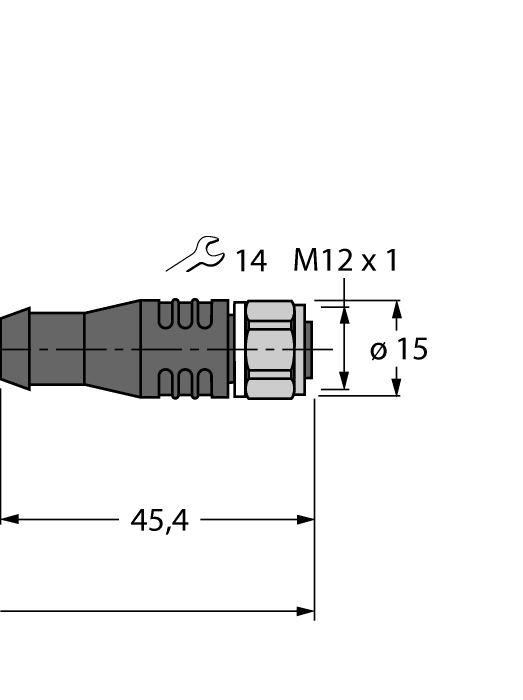

Connector A
Female, M12 × 1, Straight
Number of pins
12
Coupling nut/screw material A
Stainless Steel
Connector B
Female, M12 × 1, Straight
Number of Pins
12
Coupling nut/screw material B
Stainless Steel
Voltage (V)
30
Current (A)
1.5
Cable quality
PP-EPDM
Cable color
White
Special features
Shielded
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
80
Core cross-section (mm²)
0.14
Number of Conductors
12
Nyckelfunktioner
Cable length (m)
10
Cable quality
PP-EPDM
Connector A
Female, M12 × 1, Straight
Connector B
Female, M12 × 1, Straight
