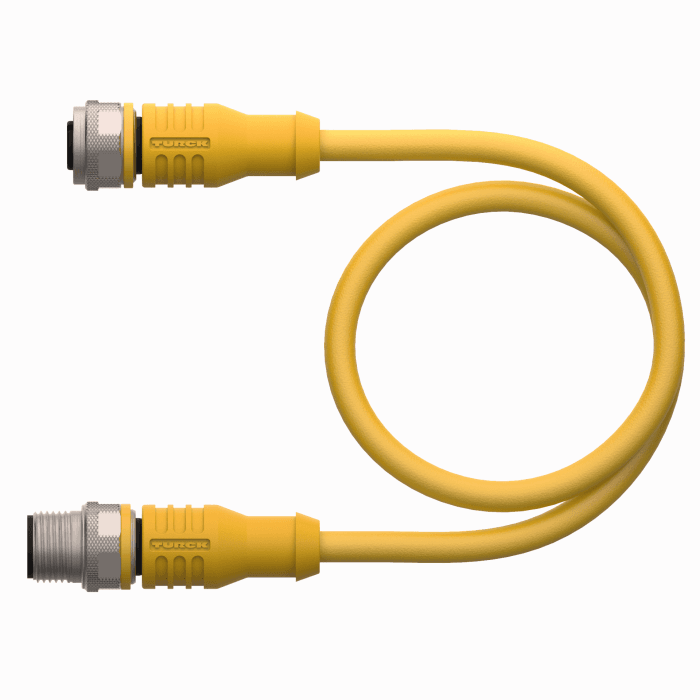

Actuator and Sensor Cable, PUR

RKC4.5T-20-RSC4.5T/TXY6713

Order ID nr. 6636142

I lager
Listpris	795,00 kr

Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80

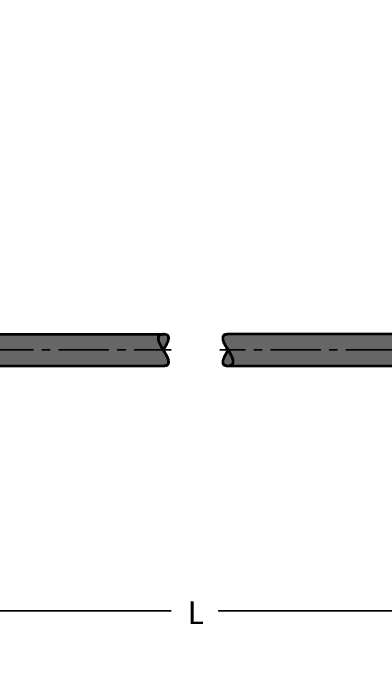

Cable length (m): 20
Application: Signal
Voltage (V): 60
Special features: AIDA, Resistant to welding sparks, Suitable for drag chain use
Approvals: cULus
Number of pins: 5
Coupling nut/screw material A: Brass
Number of Pins: 5
Coupling nut/screw material B: Brass
Current (A): 4
Cable quality: PUR
Cable color: Yellow
Design: Extension Cable

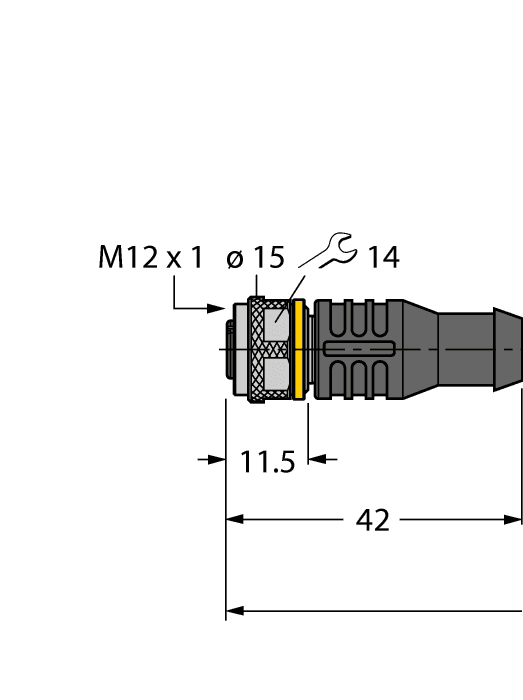

Connector A: Female, M12 × 1, Straight, A-coded

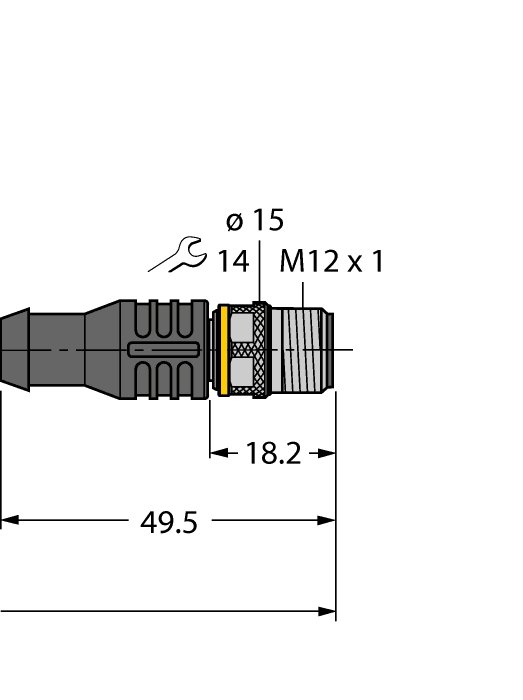

Connector B: Male, M12 × 1, Straight, A-coded
Core cross-section (mm²): 0.34
Number of Conductors: 5
