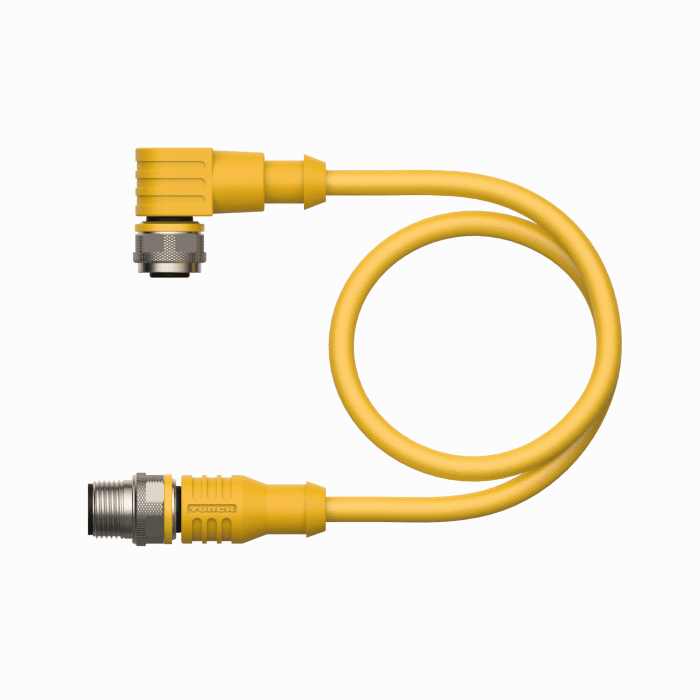

Actuator and Sensor Cable, PUR

WKC4.5T-0.5-RSC4.5T/TXY6713

Order ID nr. 6636084

I lager
Listpris	289,00 kr

Cable length (m): 0.5
Application: Signal
Design: Extension Cable
Connector A: Female, M12 × 1, Angled, A-coded
Number of pins: 5
Coupling nut/screw material A: Brass
Connector B: Male, M12 × 1, Straight, A-coded
Number of Pins: 5
Coupling nut/screw material B: Brass
Voltage (V): 60
Current (A): 4
Cable quality: PUR
Cable color: Yellow
Special features: AIDA, Resistant to welding sparks, Suitable for drag chain use
Approvals: cULus
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Core cross-section (mm²): 0.34
Number of Conductors: 5
