RKC4.4T-2-WSC4.4T/TXO3700 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

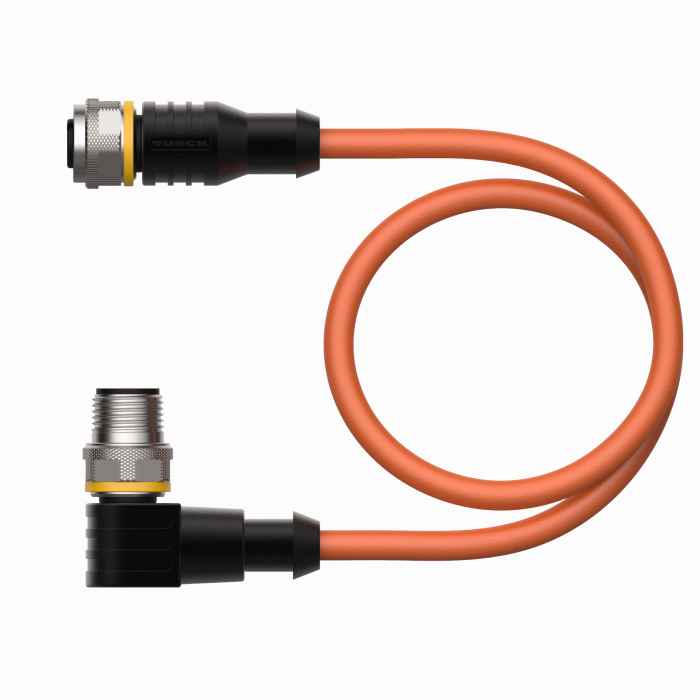

Actuator and Sensor Cable, PUR
RKC4.4T-2-WSC4.4T/TXO3700
Order ID nr. 6634696
home
Home
Loading...
Tekniska data
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
80
Cable length (m)
2
Application
Signal
Voltage (V)
250
Special features
Resistant to welding sparks, Suitable for drag chain use
Approvals
cULus
Number of pins
4
Coupling nut/screw material A
Brass
Number of Pins
4
Coupling nut/screw material B
Brass
Current (A)
4
Cable quality
PUR
Cable color
Orange
Design
Extension Cable
Connector A
Female, M12 × 1, Straight, A-coded
Connector B
Male, M12 × 1, Angled, A-coded
Core cross-section (mm²)
0.34
Number of Conductors
4
Nyckelfunktioner
Cable length (m)
2
Cable quality
PUR
Connector A
Female, M12 × 1, Straight, A-coded
Connector B
Male, M12 × 1, Angled, A-coded
home
Turck-Shop
Connectivity
Cordsets
RKC4.4T-2-WSC4.4T/TXO3700
I lager
Listpris
263,00 kr
Totalt för artikeln
263,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
