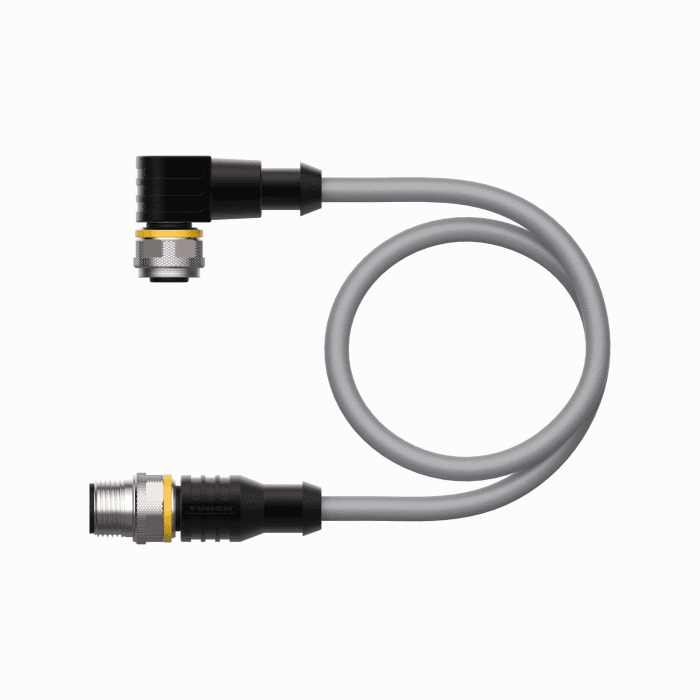

Actuator and Sensor Cable, PUR
WKC5T-5-RSC5T/TXG
Order ID nr. 6629721
I lager
Varugrupp
H1
Listpris
363,00 kr
Totalt för artikeln
363,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Home
Loading...
Tekniska data
Cable length
5
Application
Signal
Design
Extension Cable
Connector A
Female, M12 × 1, Angled, A-coded
Number of pins
4+PE
Coupling nut/screw material A
Brass
Connector B
Male, M12 × 1, Straight, A-coded
Number of Pins
4+PE
Coupling nut/screw material B
Brass
Voltage
60
Current
4
Cable quality
PUR
Cable color
Gray
Special features
Suitable for drag chain use
Approvals
cULus
Ambient temperature min.
-25
Ambient temperature max.
80
Core cross-section
0.34
Number of Conductors
5
Nyckelfunktioner
Cable length
5
Cable quality
PUR
Connector A
Female, M12 × 1, Angled, A-coded
Connector B
Male, M12 × 1, Straight, A-coded
